Part Number

MW-FL

Designation

Flange for hubless dicing blades

APPLICATIONS

Wafers and other materials Dicing
  SIMILAR PRODUCTS   GET MORE DETAILS   SEND ME A QUOTE

Description

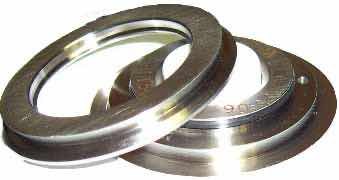

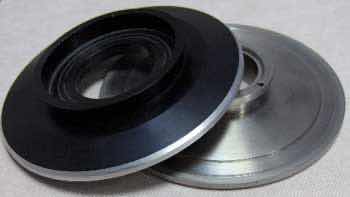

Two assembled male and female parts allow maintaining round hubless diamond dicing blades metal or resin bond.

- Material stainless steel or Titanium
- For blades up to 60 mm diameter
- The flange OD determines the blade exposure
- A dismounting tool (separately supplied) is needed to disassemble the flange

MOST POPULAR REFERENCES

  • MW-FL-4.6BA-100S : For 117mm OD blade, ID 89mm, 2.54mm exposure
  • MWFL-2187BA-180S : For 50mm to 60mm OD hubless blade, exposure 4.5mm

Technical Specifications

Outside diameter

50 to 116 Inch

Inside diameter

Typical 19.05 (0.75") Inch

Material

Stainless Steel, Titanium
