LMKS      Metal Dicing blade hubtype serie K&S

LMKS : Metal Dicing blade hubtype serie K&S LMKS : Metal Dicing blade hubtype serie K&S
LMKS : Metal Dicing blade hubtype serie K&S LMKS : Metal Dicing blade hubtype serie K&S

Part Number

LMKS

Designation

Metal Dicing blade hubtype serie K&S

APPLICATIONS

  SIMILAR PRODUCTS   GET MORE DETAILS   SEND ME A QUOTE

Description

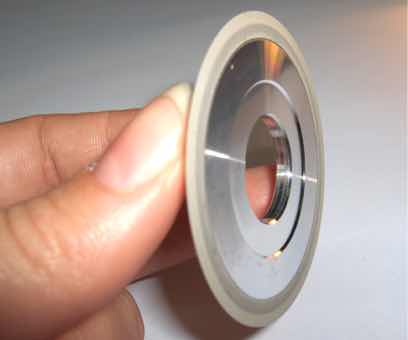

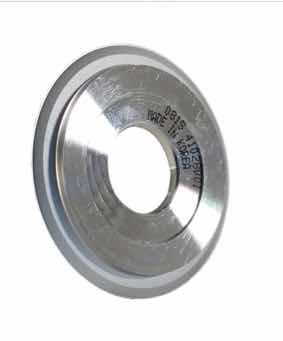

Diamond metal bonded blades for semiconductor thin materials dicing, for Silicon, GaAs, InP...And all associated materials used in production and research of semiconductor devices.

- Ready to mount on the dicing machine (hubtype models)
- Available in various thicknesses / exposures
- Diamond grit sizes range adapted to all dicing applications

MOST POPULAR REFERENCES

  • LMKS-1225 : Thick. 25-30µm, Exp. 0.64 - 0.76mm, Grit size 4-6µm
  • LMKS-1625 : Thick. 36-41µm, Exp. 0.64 - 0.76mm, Grit size 4-6µm
  • SC-20-Q-D0-JK : Kerf 91-100µm, Exp. 1524-1650um, Grit size 4-6µm
  • SC-20-Q-D0-HH : Kerf 61-70µm, Exp. 1270-1396um, Grit size 4-6µm
  • SC-20-Q-D0-FF : Kerf 41-50µm, Exp. 1016-1142um, Grit size 4-6µm
  • SC-20-Q-D0-EF : Kerf 41-50µm, Exp. 889-1015um, Grit size 4-6µm
  • SC-20-Q-D0-JP : Kerf 141-150µm, Exp. 1524-1650um, Grit size 4-6µm

Technical Specifications

Outside diameter

2.187 Inch

Inside diameter

0.75 Inch

Grit size

0.5 to 150 Inch
