Part Number
HCP-400-S-100
Designation

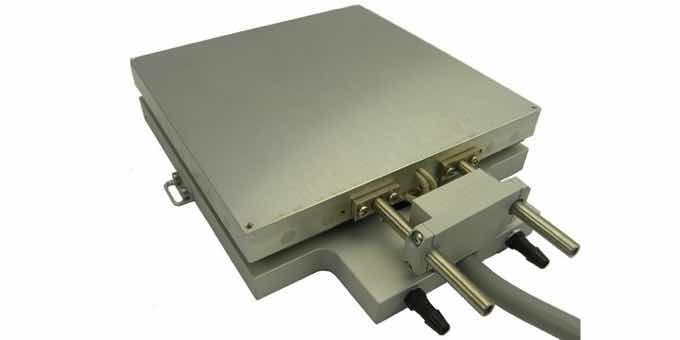

Square hot plate 100mm
This equipment suitable for research laboratories. A temperature range from -120°C to 400°C which allows a wide range of applications from bio-organisms to microelectronics.
Applications:
- Electrodes
- Nano-fluids
- Advanced Ceramics
- Metallic oxide
- Nanomaterials
- Microorganism
- Conductive polymer
- Batteries
Specifications:
• Temperature controller included
• Temperature range: -120°C to 400°C
• Chuck Square
Sample size
105 x 105 mm
Temperature range
Ambient to +400°C
Resolution
0.01 °C
Heating rate
Up to +50°C per minute (at 100°C)
Cooling rate
Up to -20°C per minute (at 100°C)
Option
-120 °C
XY travel
No
Software
Temperature drive and data export
Communication
GPIB, Ethernet, USB
