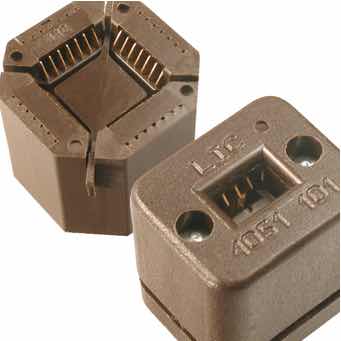

SOKLCC      Test socket for other packages (Flat-Pack, LCC, Axial-Radial, TO...)

Description Technical Specifications Documents Associated Products

SOKLCC      Test socket for other packages (Flat-Pack, LCC, Axial-Radial, TO...)

Description Technical Specifications Documents Associated Products

Part Number

SOKLCC

Designation

Test socket for other packages (Flat-Pack, LCC, Axial-Radial, TO...)

Description

Burn in and Test sockets for all package styles, newest or oldest, available from existing design or developed in semi-custom ou full custom mode.

• Pitches upon package drawing, temperature, options
• Low-Profile and small footprint design,
• Over 5000 designs, ClamShell, Open Top, Screw-Lid, C type contacts, spring contact, balls...
• Please send us the details of your component (mechanical drawing) to check availability and receive an offer


Technical Specifications

Max temperature

175 std, 250 (option)

Contact spacing (pitch)

Upon package requirement

PCB mounting

SMD, thru-hole, other

Socket options

Non-magnetic, heat sink, zero insertion force...

Closing

ClamShell, OpenTop, Screw-lid, other...
