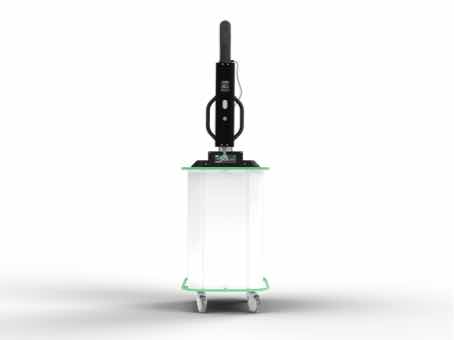

Part Number
MW-TYL
Designation
Thermal tester
MW-TYL is a range of thermal testers made in France offering standard temperatures ranging from -70°C to 225°C.
It allows electronics and microelectronics manufacturers to perform thermal cycling tests (according to the MIL-STD-810H standard, for example).
We offer two models: a -30°C version (ranging from -30°C to 225°C) and a -70°C version (ranging from -70°C to 225°C).
The operating flow rate for both versions is 2.2 to 8.5 L/s continuous.
The front display is 7 inches and the head display is 4 inches.
External communication can be GPIB 488.2 or RS232.
Temperature range
-70 to 225 °C
Cooling type
Fixed speed compressors - cascade
Stabilization time
45s (-55 to 125°C) - 45s (125 to -55°C)
Cycles number
999
Temperature rise ramp
From 0.2 to 10 °C/s
Compressed air requirements
6.5 to 8.5 Bar
Flow
2.5 to 8.5 L/s
Electrical requirements
230VAC - 50Hz - 32A mono
Screen
7" touch screen
Communication
GPIB, RS232, Ethernet
Noise
< 62 dB(A)
Dimensions
670x1090x1230 mm
Weight
225 Kg
