Part Number

SOKCUST

Designation

Customized Test Socket

APPLICATIONS

Testing a new packaged component
Burn in of components for reliability testing
  SIMILAR PRODUCTS   GET MORE DETAILS   SEND ME A QUOTE

Description

Burn in and Test socket specifically developped according to Customer SpecSheet for a particular component and associated test environment.

 • Applications : HF, high power, failure analysis on packaged devices, new packages testing...
• Fabrication in two steps : Drawing release (2 weeks) - Approval - Fabrication (typical 6 weeks)
• This socket will totally match your application as being developed for it

Technical Specifications

Maximum temperature

Up to 300 °C

Contact spacing (pitch)

Upon component style mm

PCB mounting

SMD, thru-hole, other

Socket options

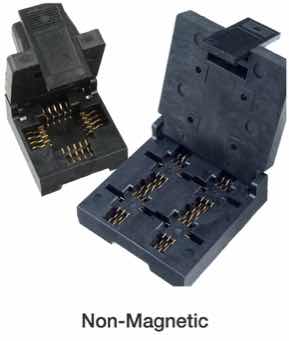

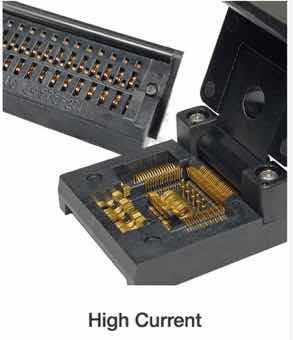

Non-magnetic, Kelvin, High Current...

Closing

ClamShell, OpenTop, Screw-lid, other...
