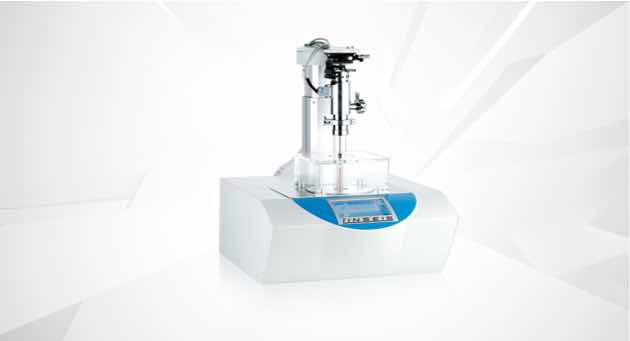

HCS100      Hall effect measurement system with Halbach configuration

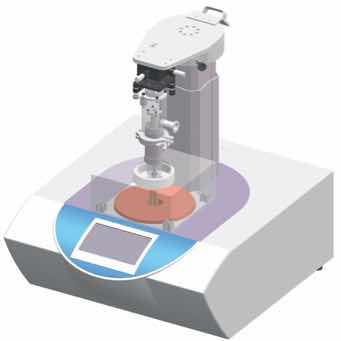

The HCS100 uses a magnet in Halbach configuration (permanent magnet in donut configuration), in order to apply a DC or AC magnetic field to the sample. The Halbach array coil has a lower intrinsic inductance than conventional coils. The Halbach array coil can therefore produce a relatively high magnetic field at a lower inductance and hence a higher power factor compared to conventional coils.
This system is therefore a powerful tool for the characterization of demanding samples, as noise measurements can easily be suppressed in most cases.

Specifications:

• AC/DC current
• Fields: -0.5T to 0.5T
• Temperature: 77K to 770K
• I(V) curve plotting
• Compact system

Applications:

- Si, Ge, SiGe, SiC, GaAs, InGaAs, InP, GaN, ZnO, TCOs
- Optoelectronic component
- Nanomaterials
- Sensors, MEMS
- Conductive polymer
- Oxide deposit
- Ceramic & Glass
- Batteries
- Electrodes
- Photovoltaic
