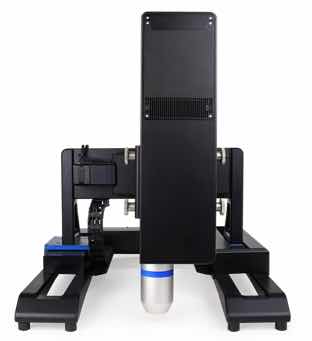

Jr100      High speed optical profilometer

Jr100 : High speed optical profilometer Jr100 : High speed optical profilometer

Part Number

Jr100

Designation

High speed optical profilometer

Description

Designed with Chromatic Light technology, which measures physical wavelength, Jr100 Profiler delivers the highest accuracy on all roughnesses, shapes and materials. Transparent or opaque.

Thanks to a travel of 100 x 100 mm on the X-Y axes, this portable optical profilometer allows high-speed measurements and does not require image sticking. With its small footprint and weight of only 17 kg, the JR100 can be transported easily to any location.

A portable unit with a high-speed sensor is truly a gateway to the frontier of profilometry.

Benefits:

- Best on wide angle surfaces
- Fast for large surfaces
- Very easy to use
- No image stitching
- No sample preparation
- No vertical recentering

Applications:

- Organic surface topography
- Fossil microstructure
- Fractography of machined parts
- Lens surface analysis
- Roughness of polymers

Technical Specifications

XY travel

100x100 mm

Z-Axis Clearance

25 mm manual

XY speed

Max 20 mm/s

Vertical resolution

Max 1 nm

Surface angle

Max 87 °
