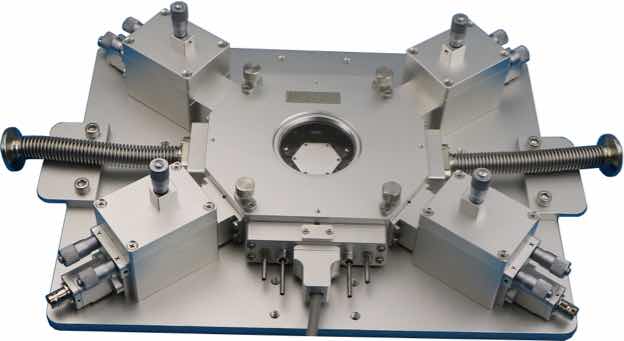

HCP-400-V-MPS      Mini probe stage under vacuum

Mini test station designed specifically to perform temperature and vacuum measurements.
This station is fully sealed, allowing it to provide a controlled and stable measurement environment. Thanks to this station, you benefit from a wide range of possibilities for your experiments.

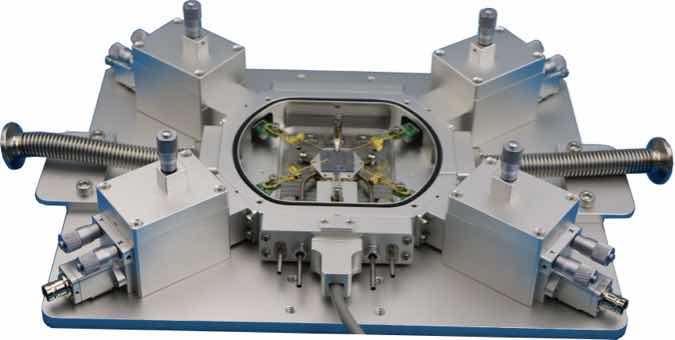

The tips used in this station are made of tungsten rhenium, which makes them very resistant and reliable. These tips can be manipulated using micropositioners, which facilitates their precise placement on pads whose size is greater than or equal to 10 µm.

Applications:

- Electrical test: resistor, transistor, capacitor
- Electrodes, diodes
- Photovoltaic
- Nanomaterials
- Sensors, MEMS, OLED, infrared...
- Silicon wafer
- Microchip

Specifications:

• Measurements on unit samples, size 28x30 mm

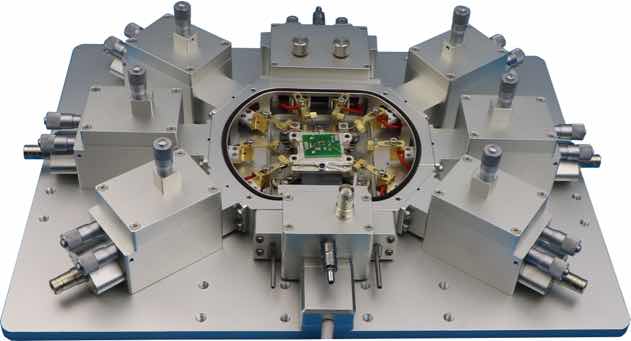

• Manual positioning with 4 micropositioners (Up to 7 micropositioners)
• Temperature range: -196°C to 400°C
• Vacuum capability up to 1 mTorr
