3Dn-500      Printing and process machine

3Dn-500 : Printing and process machine 3Dn-500 : Printing and process machine

Part Number

3Dn-500

Designation

Printing and process machine

Description

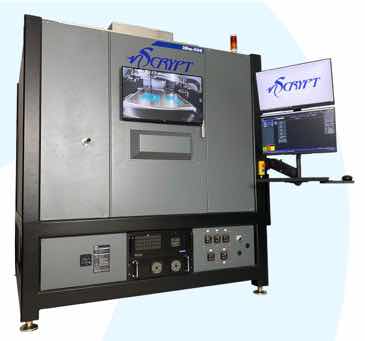

The 3Dn-500 is a high speed and precision motion platform, designed specifically for 3D manufacturing of complete products, not just individual parts. This versatile machine offers a wide range of capabilities, including automatic tool changes, a wide material choice with over 10,000+ compatible materials, and post-processing options, making it a powerful solution for various industries and applications.

One of the standout features of the 3Dn-500 is its ability to go beyond simple part production and enable the manufacturing of fully functional electronic products. By utilizing automatic tool changes, this user-configurable direct digital manufacturing system can seamlessly transition from a CAD file to a complete finished electronic product. The process involves a combination of different tool heads, each with unique capabilities.

The system excels at controlling and synchronizing multiple tool heads, in series or parallel configurations. This ensures efficient and precise coordination between the different processes involved in the manufacturing workflow.

To further enhance the capabilities of the 3Dn-500, we offer various optional features. These include sintering capabilities, a heated bed for improved material performance, UV curing for rapid material solidification, laser integration for advanced processing techniques, machine vision and scanning for Z-tracking and conformal printing, and real-time process view for monitoring and optimization.

Additionally, the 3Dn Series, which the 3Dn-500 belongs to, complies with SMEMA (Surface Mount Equipment Manufacturers Association) standards for in-line manufacturing. This makes it compatible with factory in a Line (FiL) concept, enabling seamless integration into a larger manufacturing setup.

The 3Dn-500 is a powerful and versatile 3D manufacturing platform that goes beyond traditional part production. With its automatic tool changes, a wide range of materials, and post-processing options, this system enables the creation of fully functional electronic products. By combining multiple tool heads and precise control mechanisms, the 3Dn-500 offers exceptional precision and efficiency, making it an ideal solution for advanced manufacturing applications.

DOCUMENTS

Technical Specifications

X/Y accuracy

+/- 1.5 µm

X/Y bidirectional repeatability

+/- 0.5 µm

X/Y maximum acceleration

5 g (no load)

X/Y drive system

Linear brushless servomotor

X/Y maximum speed

500 mm/s

X/Y travel range

500 x 500 mm

X/Y resolution

5 nm

Z accuracy

+/- 5 µm

Z bidirectional repeatability

+/- 1 µm

Z drive system

Ball screw / Brushless servomotor

Z maximum speed

300 mm/s

Z travel range

150 mm

Z resolution

100 nm

User interface

Software and computer included

Workstation

STRONGARM with casters

Compressed air requirements

80 to 120 PSI (dry and filtred air or nitrogen)

Vacuum requirements

2 m3/h min

Dimensions

112 x 94 x 176 cm

Weight

1361 Kg
