Part Number

HP-1000-V-PS-50

Designation

Probe station under vacuum

Description

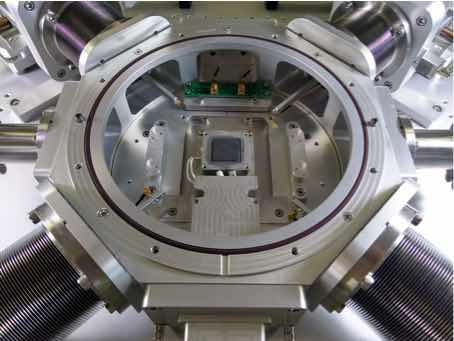

Compact probing station for high temperature measurements under vacuum.

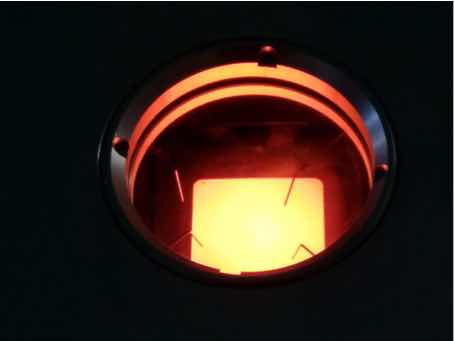

This completely hermetic station allows you to go up to 1000°C while putting your sample under vacuum.

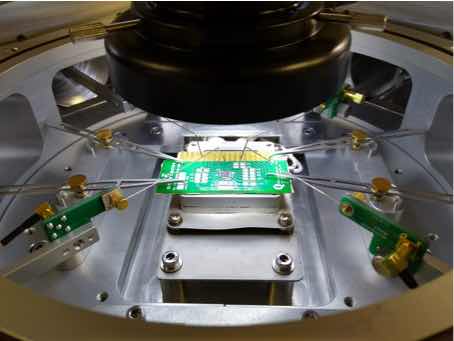

Tungsten Rhenium tips, very resistant to high temperature and reliable. These tips can be manipulated manually thanks to micropositioners, which facilitates their precise placement on pads whose size is greater than or equal to 10 µm.

Applications:

- Electrical test: resistor, transistor, capacitor
- Electrodes, diodes
- Photovoltaic
- Nanomaterials
- Sensors, MEMS, OLED, infrared...
- Silicon wafer
- Microchip

Specifications:

• Measurements on unit samples, 50x 50mm
• Manual positioning with 4 micropositioners (Up to 7 micropositioners)
• Temperature range: Ambient to 1000°C
• Vaccum chamber

Technical Specifications

Sample size

50 x 50 mm

Chamber height

6 mm

Temperature range

Ambient to 1000°C

Thermal controller

Included

Resolution

0.01 °C

Heating rate

Up to +200°C per minute (at 100°C)

Probe tips quantity

4

Connector

BNC

XY travel

20 mm

Optical window

50 mm

Vacuum

Max 10exp-3 (pump not included)

Working distance

25 mm

Software

Temperature drive and data export

Communication

GPIB, Ethernet, USB

Option

-190 °C
