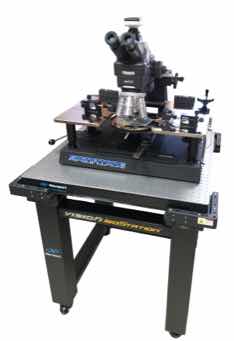

TA-VIS-9090      Active antivibration table

TA-VIS-9090 : Active antivibration table TA-VIS-9090 : Active antivibration table

Part Number

TA-VIS-9090

Designation

Active antivibration table

Description

The table allows pneumatic filtering of vibrations, the 4 dampers efficiently filter the mechanical noise from the ground or neighbourhood for an ultra fine probe analysis, inspection or assembly.

- Platens available in several dimensions upon size and weight of the equipment
- Individually adjustable air pressure sensors at each corner

Technical Specifications

Dimensions

900x900 mm

Height

850 mm

Platen

Acier inox (thickness 59mm)

Drill

M6 with 25mm pitch

Maxi load

240 Kg

Antivibration pad type

SG2

Power supply

Continuous with dry air P~6bars

Vertical isolation

1.5 Hz

Horizontal isolation

1.2 Hz

Color

Black

Feet

4 casters and adjustable feet
