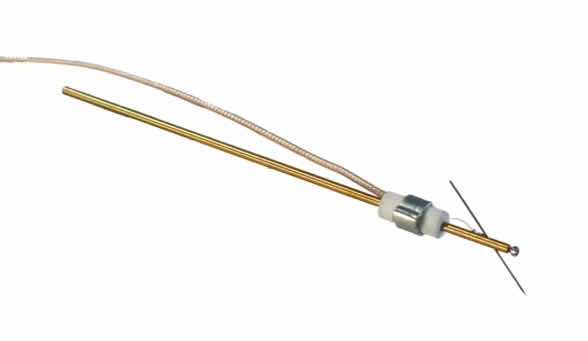

UxGB Coaxial Probe holder with ceramic isolation

Part Number

UxGB

Designation

Coaxial Probe holder with ceramic isolation

APPLICATIONS

IV / CV Measurements & Failure analysis

Low-Leakage-Current Testing

Description

Specifically designed for low noise measurements, the coaxial probe holder allows probing at low leakage.

DOCUMENTS

Probe holder brochure (pdf)

Technical Specifications

Leakage current

Few pA

Length

120 mm

Material

Brass

Tip holding

Screw et spring lock

Tip max diameter

0.6 mm

Connector

BNC

Max temperature

600 °C

Diameter

2.2 mm

Use

Can be cut and bent

Isolation

Ceramic

Cable type

RG178

Cable length

61 cm

Associated products

PTG4 - Probe tip with Tungsten wire

TEST PROBESPassive probe tips

The wire-tip combines a rigid body with a thin Tungsten wire of various diameters, the probe tip is then soft enough to avoid damaging the probing pad materials.

- Length of body 51 mm, Tungsten wire 3 to 5 mm
- Body diameter 0.51 mm, wire 5 to 125 microns
- Tip radius 0.1 to 5 microns
- Most popular references : PTG410, PTG422, PTG435, PTG4135
- Download the full list below for more information

PTG20 - Tungsten probe tip

TEST PROBESPassive probe tips

General purpose probe tip sharpened at one extremity, the body material (Tungsten) is strong enough to be bent into a variety of shapes.

- The standard application is probing on pads and/or internal lines
- Material Tungsten, length 38 mm, tip radius from 0.5µm to 100µm
- Nickel-plated option is available for body only (easy soldering), please add the suffix ''N'' to the P/N
