MWPHC      High Current Probe

MWPHC : High Current Probe
MWPHC : High Current Probe

Part Number

MWPHC

Designation

High Current Probe

APPLICATIONS

High Power Probing

Description

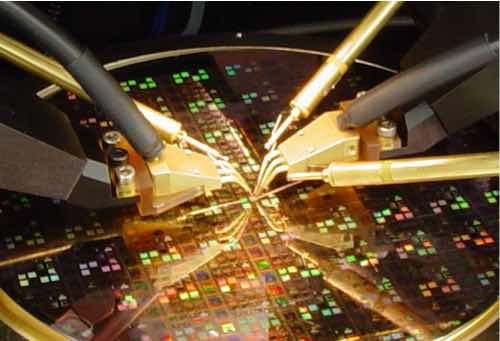

The Kelvin-capable HCP high current probe is the only probe design on this type in the industry today. The multi-probe design distributes current among the contact points and heat sink remove heat from probe-pad interface to prevent overheating. The unique design gives the user the ability to have Kelvin access to device at the pad level.

- Specs PowerPro 3kV triax / 10kV coax, 450A pulsed / 10A DC
- Tungsten probes, ceramic body for high temperature use
- Mounting on RF positioner
- Complementary to our PowerPro probe systems

MOST POPULAR REFERENCES

  • MWHCP-100 : 100A pulsed max current • Mount on SM40 or SM90 • Cable 1.5 m
  • MWHCP-450 : 450A version

Associated products

RF & Microwave micropositioner

SM40RF & Microwave micropositioner

The SM40 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.

High power chuck

HPCHUCKHigh power chuck

The high power chuck has been designed for use when probing at high voltage or high current.

- 150, 200 or 300 mm size available
- For very high voltage measurement (10KV)
