SM40 RF & Microwave micropositioner

Part Number

SM40

Designation

RF & Microwave micropositioner

APPLICATIONS

HF & Microwave Probing

Description

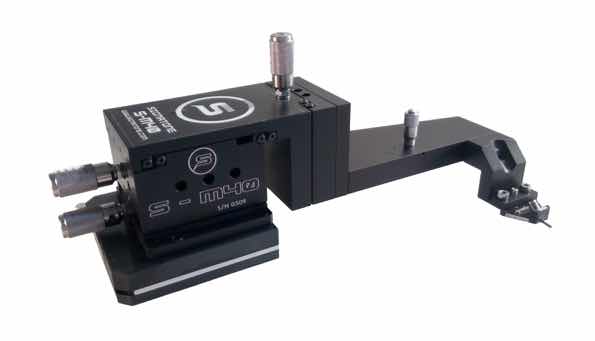

The SM40 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).

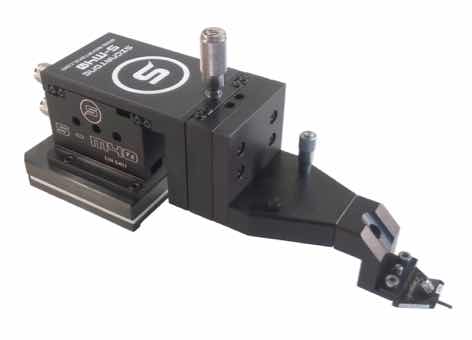

- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.

DOCUMENTS

SM40 brochure (pdf)

Technical Specifications

Accuracy

2 µm

X-Axis Clearance

25 mm

Y-Axis Clearance

25 mm

Z-Axis Clearance

25 mm

Resolution

40 TPI

Knob

Inline

Basis style

Screwed or magnetic

Head style

3 holes RF style

Planarity setup

+/- 7.5 Degree

Associated products

WL250-LE8" HF semi-automatic probe station with local enclosure

Semi-automatic probing stations for full wafer HF electrical characterization.

- Software : mapping, auto-alignment, pattern recognition, autofocus...
- Probecard application available
- Thermal characterization from -60°C to +300°C
- HF measurements up to 110 GHz
- Tool developed for design validation (R&D) and yield monitoring (production)
- Configuration : up 4 ports HF (N, S, E, W) and 4 DC
- Optional local enclosure for EMI shielding and light-tight
