Part Number

S750

Designation

Joystick micropositioner

Description

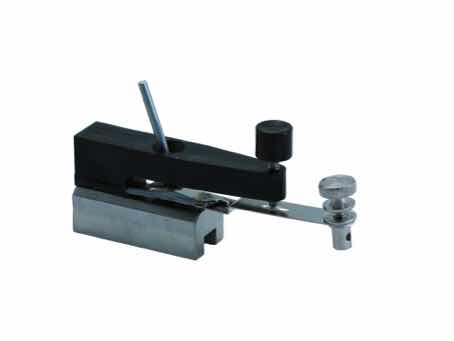

This low cost micropositioner was developped for hybrids probing or general probing on 500 µm and larger pads.

- The joystick positioner S750 will accept standard probe holders model Ux.
- A large scan area is coupled with the adjustable Z movement.
- The base is magnetic and the overall dimensions particularly low.
- The spring probe clamp is isolated from the rest of the body while maintaining electrical conductance through a wire termination.

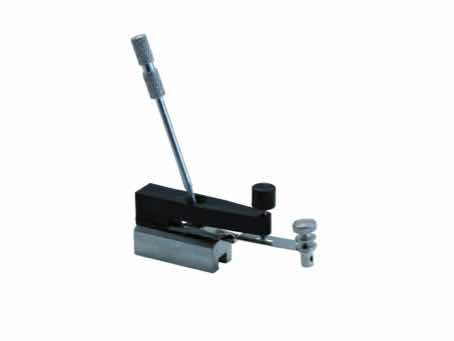

- A model S750-1 with joystick extension is available for more precision of positioning.

Technical Specifications

Accuracy

< 50 µm

X-Axis Clearance

4.75 mm

Y-Axis Clearance

4.75 mm

Z-Axis Clearance

12.5 mm

Knob

Joystick

Basis style

Magnetic

Head style

Srping head

Associated products

Tungsten probe tip

PTG20Tungsten probe tip

General purpose probe tip sharpened at one extremity, the body material (tungsten) is strong enough to be bent into a variety of shapes.

- The standard application is probing on pads and/or internal lines
- Material tungsten, length 38 mm, tip radius from 0.5µm to 100µm
- Nickel-plated option is available for body only (easy soldering), please add the suffix ''N'' to the P/N

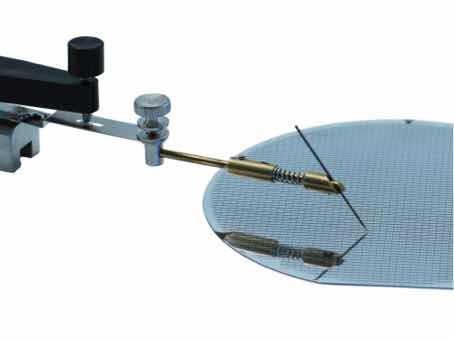

Standard Probe holder with spring lock

UPStandard Probe holder with spring lock

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for standard IV measurements.
The tip holding is done by spring for a quick and safe assembly.
