PROBE TESTINGTest accessoriesProbe holders

UP Standard Probe holder with spring lock

Part Number

Designation

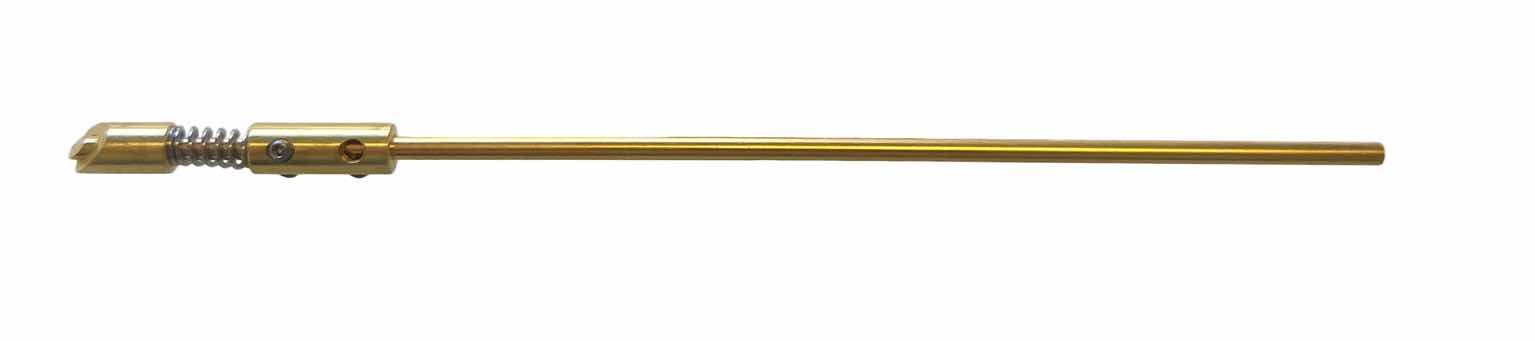

Standard Probe holder with spring lock

APPLICATIONS

IV / CV Measurements & Failure analysis

Description

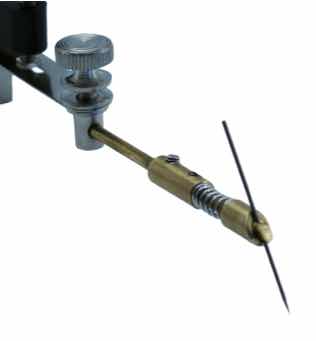

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for standard IV measurements.

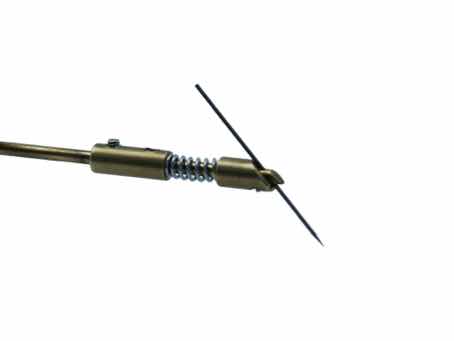

The tip holding is done by spring for a quick and safe assembly.

DOCUMENTS

Probe holder brochure (pdf)

Technical Specifications

Leakage current

1 µA

Material

Brass

Length

120 mm

Diameter

2.2 mm

Tip holding

Spring lock

Insulation

Connector

Through micropositioner

Maximum temperature

300 °C

Use

Can be cut and bent
