Part Number

LED60T

Designation

LED illuminator

Description

Optimize your microelectronics inspection and analysis operations with our LED illumination system, specifically designed for microscopes used in industrial and laboratory environments.

Developed to provide uniform illumination, this system ensures excellent visibility of components, printed circuit boards, wafers, and microstructures, even when observing minute details.

LED technology delivers constant, uniform light, minimizing intensity fluctuations that could interfere with sample observation or analysis. Precise light intensity adjustment allows the lighting to be tailored to each specific application and surface type.
Compact and easy to integrate, the system can be installed on various microscope models and is designed to meet the specific requirements of microelectronics inspection stations.

Key benefits:

- High-stability LED illumination for reliable, reproducible observation
- Uniform light that effectively reveals component details
- Precise light intensity adjustment to suit application needs
- Low heat emission, ideal for observing sensitive samples
- Long service life and low maintenance thanks to LED technology
- Compact design for easy integration with existing equipment
- Suitable for microelectronics control, inspection, characterization, and analysis operations

MOST POPULAR REFERENCES

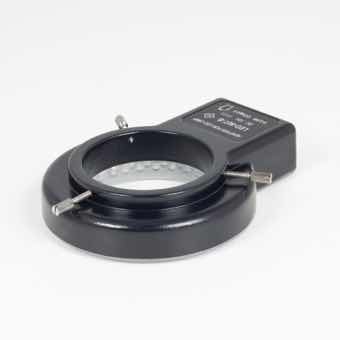

  • LED60TB : Simple with light intensity adjustment

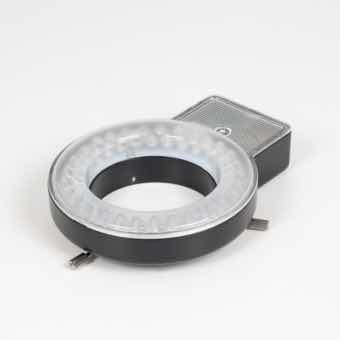

  • LED60T : With section selection

Technical Specifications

Lamp type

LED x 60

Light temperature

6800 K

Light intensity

15.000 Lux

Functions

ON/OFF swtich and intensisty dimmer

Power supply

12V ext

Option

Lighting by section (model LED60T)

Associated products

8" manual analytical probe station

S1160B-8N8" manual analytical probe station

Probe station under tips for precision analyses, such as IV, CV, on chips alone, on wafers, on components, etc. Modular, the S1160 can accommodate several options and accessories for a multitude of applications (temperature, low current measurements, etc.).

- Rapid elevation of the plate by manual arm (contact / non-contact)
- Accepts binocular and trinocular microscopes
- Wafers up to 8'' (200mm wafers)
- Angular adjustment of the Wafer
- Accommodates up to 8 DC micropositioners or a pin board
- Massive chassis for better stability

COMMON REFERENCES:

S1160A-8N: Optical bridge movement for turret microscope
S1160B-8N: Movement of the optical bridge for trinocular stereozoom microscope
S1160C-8N: Fixed optical bridge for trinocular stereozoom microscope
Stereozoom microscope

SMZ171Stereozoom microscope

Designed for precision electronics applications, this trinocular microscope offers excellent image quality for the placement, positioning, and manipulation of micro-probes on a probe station.

Its optical system delivers a clear, detailed view of components and work areas, facilitating tasks that require high precision. The trinocular design also allows for the connection of a camera to view, record, or share operations in real time.

With its stereoscopic viewing capabilities and a depth of field optimized for precision work, the microscope enables accurate micro-probe positioning while maintaining excellent depth and distance perception.

It is ideally suited for microelectronics, assembly, inspection, testing, and prototyping tasks where precise movement and clear visibility of the work area are essential.

- Trinocular head for viewing and camera connection
- Stereoscopic viewing for excellent control of the work area
- Suitable for micro-probe placement and positioning
- Excellent visibility of miniature components and connections
- Long working distance (WD 110mm)
- Variety of stands and mounts available

Rugged, versatile, and built for technical environments, this microscope is an ideal tool for electronics and microelectronics professionals requiring precise visualization during delicate operations.
It enables greater control and precision when working with miniature components, while also offering the ability to document operations via the trinocular camera port.
Vacuum mini probe station

HCP-400-V-PMVacuum mini probe station

Mini test station for temperature and vacuum measurements.
This completely hermetic ultra-compact station offers you a wide range of possibilities. Rhenium tungsten tips manually manipulated and can be placed on studs >= 100µm.

Applications:

- Electrical test: resistor, transistor, capacitor
- Electrodes, diodes
- Photovoltaic
- Nanomaterials
- Sensors, MEMS, OLED, infrared...
- Silicon wafer
- Microchip

Specifications:

• Measurements on unit samples, size 28x30 mm
• Manual positioning 4 mobile spring-mounted prongs.
• Temperature range: -190°C to 400°C
• Vacuum capability up to 1 mTorr
