Part Number

UH114

Designation

Manual wafer / frame film mounter

Description

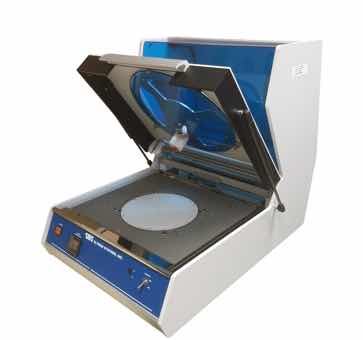

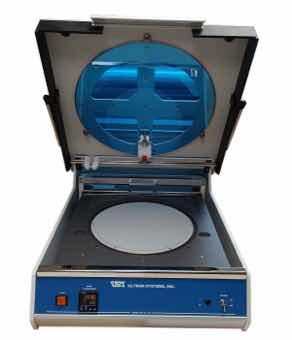

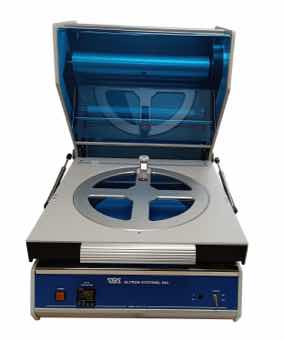

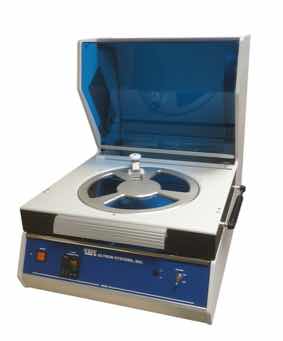

The UH114 are manual wafer film mounting systems up to 12".
For dicing/sawing applications, uniform lamination of an adhesive plastic film is essential. Our machines feature a set of easily adjustable spring loaded rollers as well as film tension bars along the X and Y axes to ensure bubble-free lamination of the film onto the wafer and frame. Additionally, these models feature a shrink film cutting system with adjustable cutting pressure to accommodate different tape base materials and thicknesses.

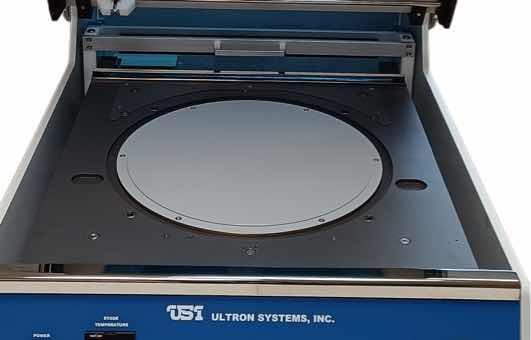

Roller pressure is adjusted to meet different process requirements and to accommodate different wafer thicknesses. This moves manually along the substrate once the film is stuck. A digital temperature controller ensures consistent temperatures on the chuck for repeatable mounting.

Adjustable alignment brackets and suction cups fit almost all types of film frames including plastic ones. The chuck height is also adjustable relative to the frame height for different wafer thicknesses.

Technical specificities:

- Available in 6", 8" or 12" version
- Adapter to make 6" on 8" machine or 8" on 12" machine possible
- Protective film winder roller assembly for use with film with support layer
- Easily adjustable spring roller assembly
- Uniform film tension
- Uniform adhesion allows for bubble-free lamination
- Circular cutter (wheel type) to cut the film on the film frame
- Adjustable cutting pressure for different films (thickness/hardness)
- Temperature-controlled digital screen
- Chuck height adjustable from top of unit
- Works with film without support or with support (optional)
- Fits wrapped protective film/layer externally or internally.
- Adjustable alignment pins and suction cups
- Accepts all types of film (specify type and size)
- End cutter for film separation
- Anti static electricity system

MOST POPULAR REFERENCES

  • UH114-6 : 6" (150 mm) model
  • UH114-8 : 8" (200 mm) model
  • UH114-12 : 12" (300 mm) model

Technical Specifications

Wafers & Substrates diameter

2 to 12 "

Frame holding

Vacuum or magnetic

Protective film roller

Optional

Sample holding

Vacuum

Film take up

Yes

Lamination roller

Manual

Lamination pressure adjustement

Yes

Heating plate

Yes (60°C max)

Tape cutting

Circular and linear

Power supply

230VAC / 50Hz / Mono / 0.5A

Vacuum

25 in Hg
