PACE      Measurement and control software

Description

PACE is a software that provide solution to combine measurement tools, automatic characterisation sequences, import and export datas.

PACE is composed of 3 windows :

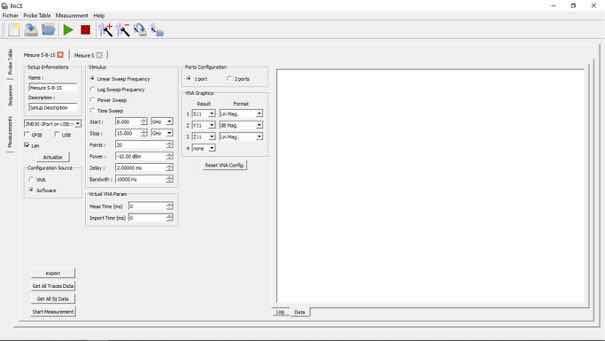

- Measurement window : configuration and control of measurement tools

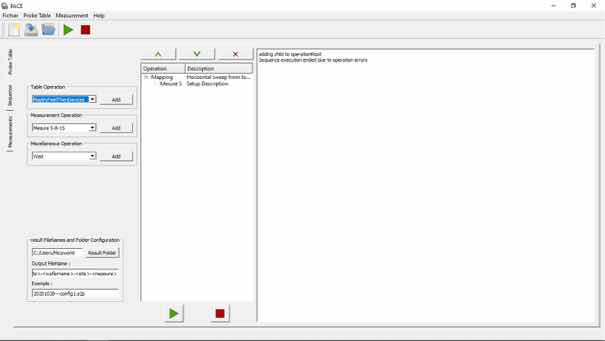

- Measurement sequence window : configuration and control of the sequence execution

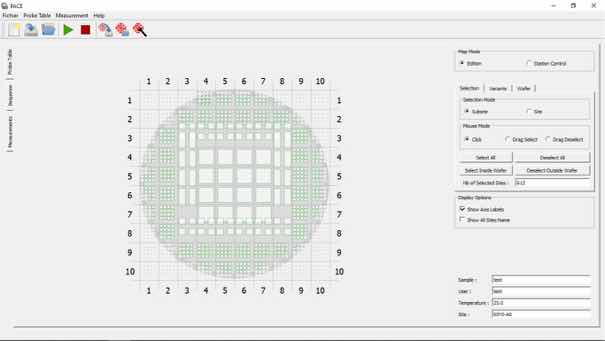

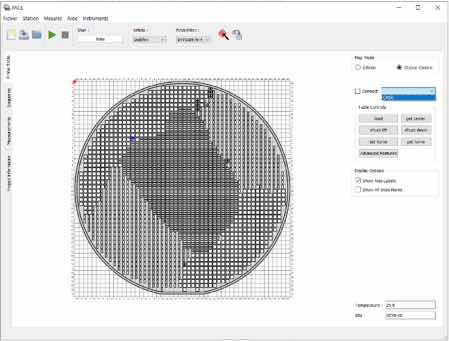

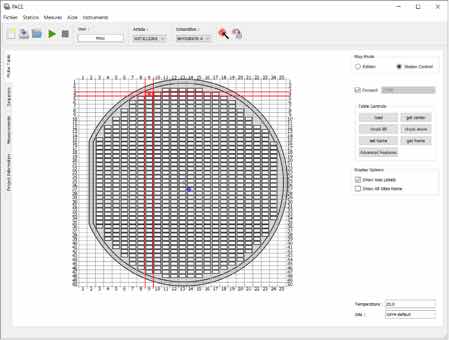

- Mapping window : mapping configuration and control of the probe station (for semi-auto probe station)

Interface can be customised to match customer needs :
- MEMS test on PCB holder
- Import of GDS file for wafer mapping
- Control of vector network analyser (Rohde & Schwarz), SMU (Keithley, Keysight...)

Associated products

6

CM4656" semi-automatic probe station

Semi-automatic probing stations for full wafer electrical characterization.

- Software : mapping, auto-alignment, pattern recognition, autofocus...
- X-Y stage drives by induction motor for high speed and accuracy
- Probecard application available
- High voltage (HV -10kV) and low leakage (fA) measurements
- Tool developed for design validation (R&D) and yield monitoring (production)
8

CM2508" semi-automatic probe station

Semi-automatic probe stations for full wafer electrical characterization up to 8" (200 mm).

- Software : mapping, auto-alignment, pattern recognition, autofocus...
- Probecard application available
- Temperature characterization up to +600°C
- High voltage (HV - 10kV) and low leakage (fA) measurements
- Tool developed for design validation (R&D) and yield monitoring (production)
- Configuration : up 10 ports DC/Kelvin
- Compatible with high performances ERS chuck (patented air cooling system, temperature from -60°C to +300°C)

MOST POPULAR REFERENCES

CM250 : Version 200 mm
CM350 : Version 300 mm
8

WL250-LE8" HF semi-automatic probe station with local enclosure

Semi-automatic probing stations for full wafer HF electrical characterization.

- Software : mapping, auto-alignment, pattern recognition, autofocus...
- Probecard application available
- Thermal characterization from -60°C to +300°C
- HF measurements up to 110 GHz
- Tool developed for design validation (R&D) and yield monitoring (production)
- Configuration : up 4 ports HF (N, S, E, W) and 4 DC
- Optional local enclosure for EMI shielding and light-tight

MOST POPULAR REFERENCES

WL250 : 200 mm version
WL350 : 300 mm version
WL250-LE : 200 mm with local enclosure
WL350-LE : 300 mm with local enclosure
