PROBE TESTINGProbe stationsCompact thermal probe stations

HCP-400-V-PM Mini probe stage under vacuum

Part Number

HCP-400-V-PM

Designation

Mini probe stage under vacuum

Description

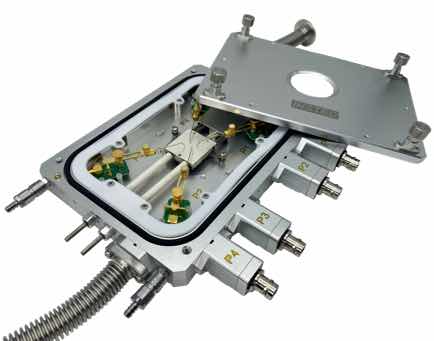

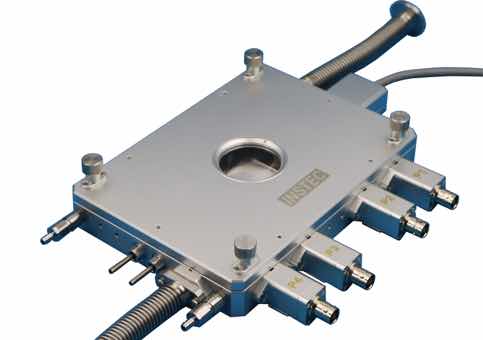

Mini test station for temperature and vacuum measurements.
This completely hermetic ultra-compact station offers you a wide range of possibilities. Rhenium tungsten tips manually manipulated and can be placed on studs >= 100µm.

Applications:

- Electrical test: resistor, transistor, capacitor
- Electrodes, diodes
- Photovoltaic
- Nanomaterials
- Sensors, MEMS, OLED, infrared...
- Silicon wafer
- Microchip

Specifications:

• Measurements on unit samples, size 28x30 mm

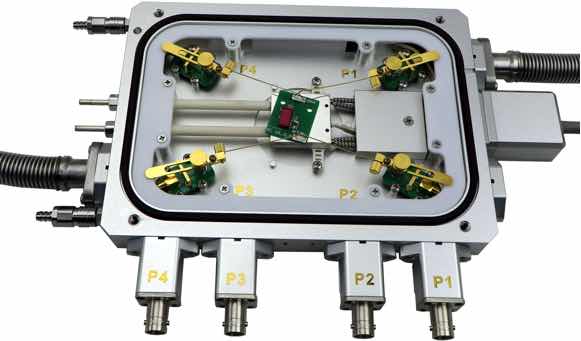

• Manual positioning 4 mobile spring-mounted prongs.
• Temperature range: -196°C to 400°C
• Vacuum capability up to 1 mTorr

DOCUMENTS

HCP-400-V-PM brochure (pdf)

Technical Specifications

Thermal controller

MK2000b included

Thermal block material

Silver

Min temperature

Ambiant (-196°C optional)

Maximum temperature

+400 °C

Temperature sensor

100 Ω Platinum RTD

Maximum heating rate

+30°C / min @ 100°C

Minimum heating rate

+/- 0.01°C / min

Maximum cooling rate

-100°C / min @ 100°C

Minimum cooling rate

+/- 0.01°C / min

Temperature resolution

0.01 °C

Temperature stability

+/- 0.05°C (>25°C), +/- 0.1°C (<25°C)

Software

InstecApp (Only Windows)

License

Multi-users

Communication

Ethernet or USB

Electrical requirements

230VAC - 50Hz - Mono - 5A

Optical access

Reflection only

Optical window

Exchangeable

Minimum working distance

8 mm

Top aperture

Ø18 mm

Top viewing angle

+/- 48 °

Window defrost

Integrated external window defrost

Sample size

28 x 30 mm

Sample holding

Chamber height

5.5 mm

Atmosphere control

Gas : 0.5 Bar - Vacuum : 10µBar

Vacuum connectors

2 x KF-16

Vacuum pump

Not included

Frame cooling

Water cooling (chiller not included)

Mounting

Bracket

Frame dimensions

180 x 130 x 26.5 mm

Station weight

1500 g

Probe tips quantity

Probe tips material

Tungsten-rhenium

Probe tips positioning

Manual for pads > 100 µm

Electrical connectors

BNC (except option)

Electrical plate connection

Grounded (except option)
