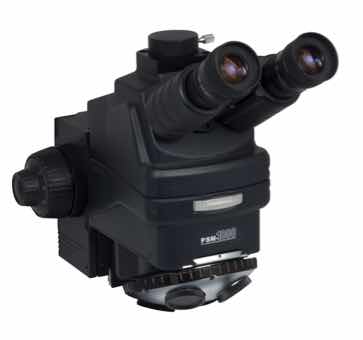

PSM1000      Turret microscope

  SIMILAR PRODUCTS   GET MORE DETAILS   SEND ME A QUOTE

Description

Turret microscope for fine inspection and high magnifications.
The PSM1000 is useful for precision contact on very small surfaces.

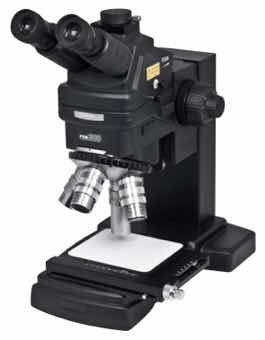

- It can be used as a stand alone or mounted onto analytical probe station
- A range of accessories is available including a variety of objectives (NIR, NUV, polarizer, analyzer...)
- The trinocular head accepts a choice of digital cameras
- Spectroscopic applications available

DOCUMENTS

PSM1000 spec sheet  PSM1000 spec sheet (pdf)

Technical Specifications

Eyepieces

10 X

Magnification range

20 to 2000 X

Internal zoom

2 X

Focus block

Included with 50mm course

Illumination

Optical fiber (not included)

Camera capable

Yes

Stand

Not included
