Part Number

CM-BMC

Designation

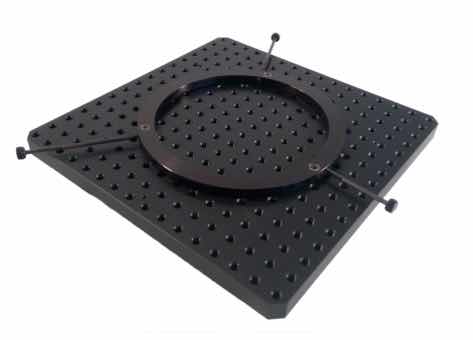

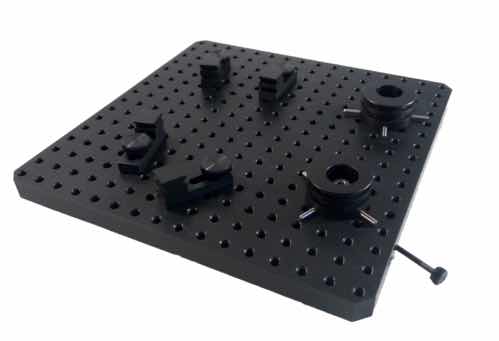

Board mount chuck

Description

This PCB board holder permit to fix electronic board already mounted with components on a probe station.

Technical Specifications

Screw size

10/32 Inch

Pitch

13 mm

Diameter

117 mm

Associated products

8

S1160B-8N8" manual analytical probe station

Probe station under tips for precision analyses, such as IV, CV, on chips alone, on wafers, on components, etc. Modular, the S1160 can accommodate several options and accessories for a multitude of applications (temperature, low current measurements, etc.).

- Rapid elevation of the plate by manual arm (contact / non-contact)
- Accepts binocular and trinocular microscopes
- Wafers up to 8'' (200mm wafers)
- Angular adjustment of the Wafer
- Accommodates up to 8 DC micropositioners or a pin board
- Massive chassis for better stability

COMMON REFERENCES:

S1160A-8N: Optical bridge movement for turret microscope
S1160B-8N: Movement of the optical bridge for trinocular stereozoom microscope
S1160C-8N: Fixed optical bridge for trinocular stereozoom microscope
8

CM2108" high accuracy manual probe station

The Checkmate series represents the most accomplished probing stations, available for wafer up to 12".

- Upgradability from one version to another
- Manual or Semi-automatic version
- Test on Probecards available
- Optional thermal charactherization (-60°C to +300°C)
- High voltage (HV) and low current (fA) measurements possible
- Allows up to 8 DC micropositioners or probe card

MOST POPULAR REFERENCES

CM210 : Version 200 mm
CM310 : Version 300 mm
