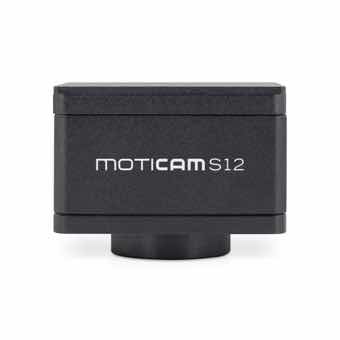

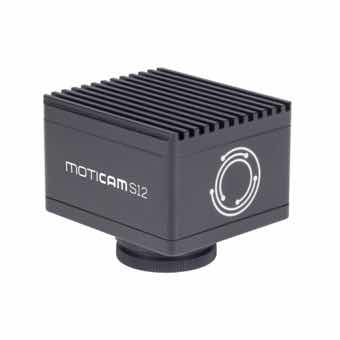

MOTICAMS12 Digital Camera

Part Number

MOTICAMS12

Designation

Digital Camera

APPLICATIONS

IV / CV Measurements & Failure analysis

HF & Microwave Probing

High Power Probing

Low-Leakage-Current Testing

Description

Camera adaptable on all trinocular microscopes, useful for probe tips placing.

- Capture and measurement software supplied
- High resolution camera

DOCUMENTS

MOTICAMS12 brochure (pdf)

Technical Specifications

Sensor type

CMOS 1/1.7"

Resolution

12MP (4000x3000)

Connection

USB3.1

Software

Motic Images Plus, visualization, pictures and measurement

Mount type

C mount

Power supply

Through USB

Associated products

PSM1000Turret microscope

Turret microscope for fine inspection and high magnifications.
The PSM1000 is useful for precision contact on very small surfaces.

- It can be used as a stand alone or mounted onto analytical probe station
- A range of accessories is available including a variety of objectives (NIR, NUV, polarizer, analyzer...)
- The trinocular head accepts a choice of digital cameras
- Spectroscopic applications available

S1160B-8N8" manual analytical probe station

Probe station under tips for precision analyses, such as IV, CV, on chips alone, on wafers, on components, etc. Modular, the S1160 can accommodate several options and accessories for a multitude of applications (temperature, low current measurements, etc.).

- Rapid elevation of the plate by manual arm (contact / non-contact)
- Accepts binocular and trinocular microscopes
- Wafers up to 8'' (200mm wafers)
- Angular adjustment of the Wafer
- Accommodates up to 8 DC micropositioners or a pin board
- Massive chassis for better stability

COMMON REFERENCES:

S1160A-8N: Optical bridge movement for turret microscope
S1160B-8N: Movement of the optical bridge for trinocular stereozoom microscope
S1160C-8N: Fixed optical bridge for trinocular stereozoom microscope

SMZ171Stereozoom microscope

Designed for precision electronics applications, this trinocular microscope offers excellent image quality for the placement, positioning, and manipulation of micro-probes on a probe station.

Its optical system delivers a clear, detailed view of components and work areas, facilitating tasks that require high precision. The trinocular design also allows for the connection of a camera to view, record, or share operations in real time.

With its stereoscopic viewing capabilities and a depth of field optimized for precision work, the microscope enables accurate micro-probe positioning while maintaining excellent depth and distance perception.

It is ideally suited for microelectronics, assembly, inspection, testing, and prototyping tasks where precise movement and clear visibility of the work area are essential.

- Trinocular head for viewing and camera connection
- Stereoscopic viewing for excellent control of the work area
- Suitable for micro-probe placement and positioning
- Excellent visibility of miniature components and connections
- Long working distance (WD 110mm)
- Variety of stands and mounts available

Rugged, versatile, and built for technical environments, this microscope is an ideal tool for electronics and microelectronics professionals requiring precise visualization during delicate operations.
It enables greater control and precision when working with miniature components, while also offering the ability to document operations via the trinocular camera port.
