S926S      Precision micropositioner S926 with spring head

S926S : Precision micropositioner S926 with spring head
S926S : Precision micropositioner S926 with spring head

Part Number

S926S

Designation

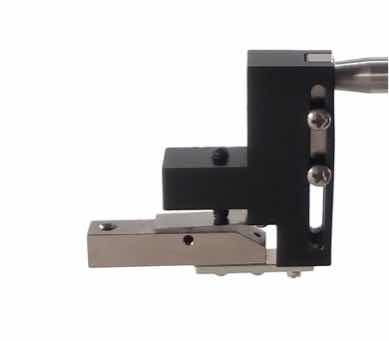

Precision micropositioner S926 with spring head

Description

This precision micropositioner allows placing probe tips on pads or lines within accuracy of the micrometer.
The spring head is perfect for temperature applications or fragile layers.

MOST POPULAR REFERENCES

  • S926SLM : Magnetic base, placement to the right of the platen
  • S926SRM : Magnetic base, placement to the left of the platen
  • S926SRV : Vacuum base, placement to the left of the platen
  • S926SLV : Vacuum base, placement to the right of the platen

DOCUMENTS

Technical Specifications

Accuracy

1 µm

X-Axis Clearance

12 mm

Y-Axis Clearance

12 mm

Z-Axis Clearance

7 mm

Resolution

100 TPI

Knob

Right or Left

Basis style

Magnetic or vacuum

Head style

Srping head

Associated products

Dark box with chuck

D3Dark box with chuck

This small probe station has been designed for high themperature application, it includes a chuck (ambient or hot chuck) and a circular platen that allow several magnetic micropositioner.

- A microscope can be used to contact small pads
- An economical solution for a variety of probing applications

Coaxial Probe holder with teflon isolation

UxTBCoaxial Probe holder with teflon isolation

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for low noise IV measurements with it teflon insulation.
Tungsten probe tip

PTG20Tungsten probe tip

General purpose probe tip sharpened at one extremity, the body material (tungsten) is strong enough to be bent into a variety of shapes.

- The standard application is probing on pads and/or internal lines
- Material tungsten, length 38 mm, tip radius from 0.5µm to 100µm
- Nickel-plated option is available for body only (easy soldering), please add the suffix ''N'' to the P/N
