D3      Dark box with platen

D3 : Dark box with platen D3 : Dark box with platen
D3 : Dark box with platen D3 : Dark box with platen
D3 : Dark box with platen D3 : Dark box with platen

Part Number

D3

Designation

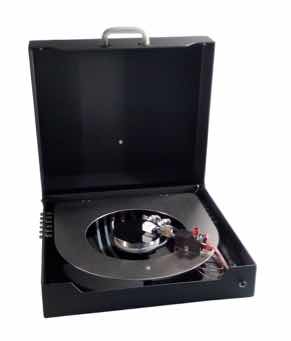

Dark box with platen

Description

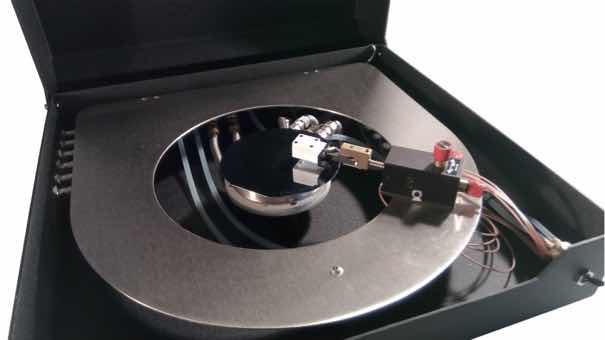

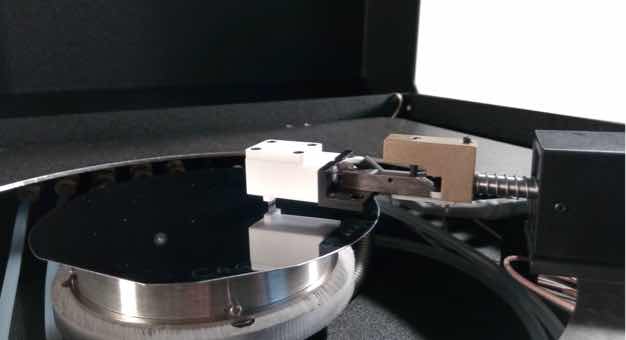

This small probe station has been designed for high themperature application, it includes a chuck (ambient or hot chuck) and a circular platen that allow several magnetic micropositioner.

- A microscope can be used to contact small pads
- An economical solution for a variety of probing applications

DOCUMENTS

Technical Specifications

Sample holding

Vacuum ring, zone selection (pump not included)

Stage Drive

No

Chuck stage Z travel

No

Planarity

< 10 µm

Platen material

Steel for vacuum or magnetic micropositioner

Maximum temperature

600 °C

Options

Ambient chuck, microscope, nitrogen shower...

Connection

6 feedthrough connector (BNC or Trx)

Openning

Top opening

Associated products

Coaxial Probe holder with ceramic isolation

UxGBCoaxial Probe holder with ceramic isolation

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for low noise IV measurements with it insulation and for high temperature, up to 600°C.
Stereozoom microscope

SMZ171Stereozoom microscope

Designed for precision electronics applications, this trinocular microscope offers excellent image quality for the placement, positioning, and manipulation of micro-probes on a probe station.

Its optical system delivers a clear, detailed view of components and work areas, facilitating tasks that require high precision. The trinocular design also allows for the connection of a camera to view, record, or share operations in real time.

With its stereoscopic viewing capabilities and a depth of field optimized for precision work, the microscope enables accurate micro-probe positioning while maintaining excellent depth and distance perception.

It is ideally suited for microelectronics, assembly, inspection, testing, and prototyping tasks where precise movement and clear visibility of the work area are essential.

- Trinocular head for viewing and camera connection
- Stereoscopic viewing for excellent control of the work area
- Suitable for micro-probe placement and positioning
- Excellent visibility of miniature components and connections
- Long working distance (WD 110mm)
- Variety of stands and mounts available

Rugged, versatile, and built for technical environments, this microscope is an ideal tool for electronics and microelectronics professionals requiring precise visualization during delicate operations.
It enables greater control and precision when working with miniature components, while also offering the ability to document operations via the trinocular camera port.
Micropositioner S725 for high temperature

S725HTMicropositioner S725 for high temperature

This economic micropositioner will allow probe tips to land on pads or lines down to 20 µm.
Special model for temperature probe test measurement, up to 600°C.
Thermal chuck controller

S1080Thermal chuck controller

The trip-temp chuck and controller (ambient-hot-cold) ranges from -60°C to 300°C and allows a complete temperature characterization of devices, whether they are partial wafers or full wafers up to 12".

- The temperature parameters setting is by touch screen panel or remote control
- The transition time from hot to cold or reverse is one of the fastest on the market
- It is possible to program a ramp while heating up
