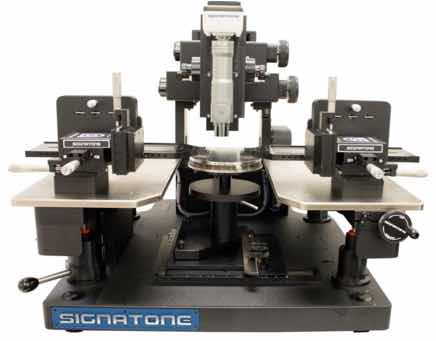

SLAP90-E      RF micropositioner for extender

SLAP90-E : RF micropositioner for extender
SLAP90-E : RF micropositioner for extender

Part Number

SLAP90-E

Designation

RF micropositioner for extender

Description

This micropositioner, which is specific to ultra-high frequency RF measurements with a milimetric head, accommodates frequency multipliers.

- East, West configuration
- Screwed base for a better stability
- Angular adjustment to ensure the contact of milimetric heads (GS, GSG configurations)
- Compatible with differents frequency extender models (Rohde & Schwarz, Keysight, VDI ...)

DOCUMENTS

Technical Specifications

Accuracy

1 µm

X-Axis Clearance

25 mm

Y-Axis Clearance

25 mm

Z-Axis Clearance

25 mm

Resolution

2 µm

Knob

Right or Left

Basis style

Screwed

Head style

milimetric

Planarity

6° (0.1° résolution)

Associated products

High performance RF probe from 220 to 325GHz

MWRF-325B(BT)High performance RF probe from 220 to 325GHz

Serie sof high performance probes for Microwave application from 220 to 325GHz, GSG, GS or SG configuration.

- These probes are available in different pitch from 25µm to 90µm
- We recommend a GSG footprint for best performance
- Low loss and low dispersion characteristics, reliable low resistance contact
- WR-3 waveguide, Bias T option available
- Available in BeCu
High stability Millimetric manual probe station

WL170-THzHigh stability Millimetric manual probe station

Station specially designed for ultra high frequency applications, with the use of millimetric heads (extenders).
This system allows you to mount a micropositioner with a large plate that can support extenders from the main manufacturers (R&S, VDI, etc.).

- Up to 1.1 THz
- Raised chuck
- Rotation lock
- Long working distance microscope
8

WL2108" high accuracy RF manual probe station

The WaveLink series represents the most accomplished HF probing stations, available for wafer up to 12".

- No resonnance up to 500 Ghz
- Upgradability from one version to another
- Manual or Semi-automatic version
- Optional thermal charactherization (-60°C to +300°C)
- Allows up to 4 RF micropositioners and 4 DC micropositioners simultaneously

MOST POPULAR REFERENCES

WL210 : Version 200 mm
WL310 : Version 300 mm
High performance RF probe from 500 to 750GHz

MWRF-750B(BT)High performance RF probe from 500 to 750GHz

Serie of high performance probes for Microwave application from 500 to 750GHz, GSG, GS or SG configuration.

- These probes are available in different pitch from 25µm to 35µm
- We recommend a GSG footprint for best performance
- Low loss and low dispersion characteristics, reliable low resistance contact
- WR-1.5 waveguide, Bias T option available
- Available in BeCu
High performance RF probe from 750 to 1.1THz

MWRF-1100B(BT)High performance RF probe from 750 to 1.1THz

Series of high performance probes for Microwave applications from 750 to 1100GHz, GSG, GS or SG configurations.

- These probes are available in different pitch from 25µm to 35µm
- We recommend a GSG footprint for best performance
- Low loss and low dispersion characteristics, reliable low resistance contact
- WR-1.0 waveguide, Bias T option available
- Available in BeCu
