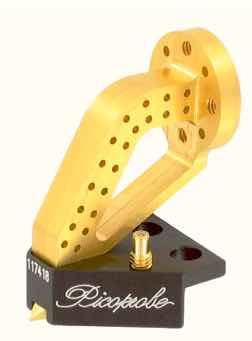

MWRF-325B(BT)      High performance RF probe from 220 to 325GHz

MWRF-325B(BT) : High performance RF probe from 220 to 325GHz MWRF-325B(BT) : High performance RF probe from 220 to 325GHz

Part Number

MWRF-325B(BT)

Designation

High performance RF probe from 220 to 325GHz

Description

Serie sof high performance probes for Microwave application from 220 to 325GHz, GSG, GS or SG configuration.

- These probes are available in different pitch from 25µm to 90µm
- We recommend a GSG footprint for best performance
- Low loss and low dispersion characteristics, reliable low resistance contact
- WR-3 waveguide, Bias T option available
- Available in BeCu

Technical Specifications

Frequency

220 to 325 GHz

Configuration

GSG, GS, SG

Pitch

25 to 90 µm

Material

BeCu

Waveguide

WR-3

Insertion Loss

3 db

Return Loss

15 db
