SM90 RF & Microwave micropositioner

Part Number

SM90

Designation

RF & Microwave micropositioner

APPLICATIONS

HF & Microwave Probing

Description

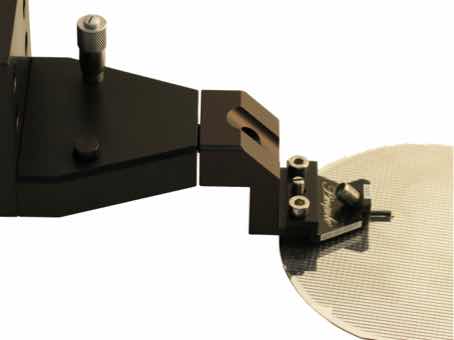

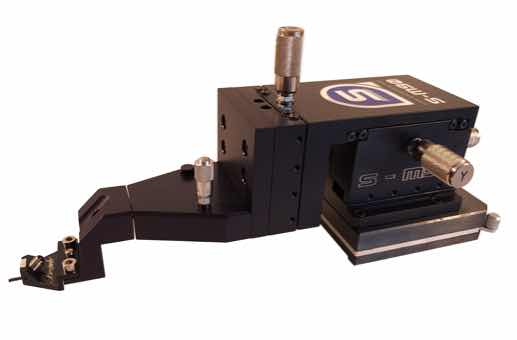

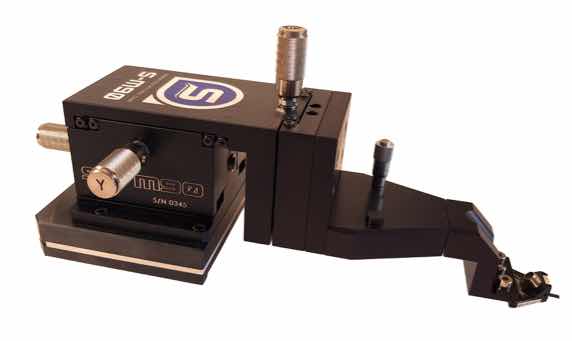

The SM90 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).

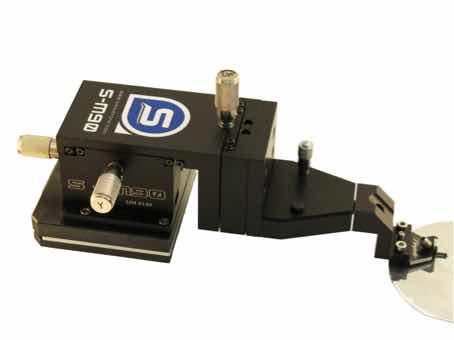

- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.

DOCUMENTS

SM90 brochure (pdf)

Technical Specifications

Accuracy

2 µm

X-Axis Clearance

25 mm

Y-Axis Clearance

25 mm

Z-Axis Clearance

25 mm

Resolution

40 TPI

Knob

Right or Left

Basis style

Screwed or magnetic

Head style

3 holes RF style

Planarity setup

/- 7.5 Degree

Associated products

MWRF-40ARF probe 40 GHz

High-precision RF measurements for your most demanding applications.

Designed to meet the requirements of microwave characterization environments, our coaxial RF probes enable reliable, accurate, and repeatable radiofrequency measurements directly on your semiconductor components.

They provide a high-performance solution for the electrical and RF characterization of active and passive components, whether in a research laboratory or an industrial setting.

Specifications:

• Configurations: GSG, GS, SG, GSSG, GSGSG
• Pitch from 25µm to 2540µm
• Various head styles
• 2.9mm K-type female connector
• Available in BeCu, nickel, or tungsten
• Non-magnetic option
• High-temperature and high-current/high-voltage options

MWRF-ECP18RF probe 18 GHz

Series of probes for RF Microwave application up to 18GHz, GSG, GS, SG and Dual.

- These probes are available in different pitch from 100µm to 2500µm, per 25µm step
- Various mounting styles for positionners
- Non Magnetic option, please ask us

MWRF-67ARF probe 67 GHz

Serie of probes for RF Microwave applications up to 67GHz, GSG, GS, SG or "dual" configurations (dual = 2 probes on 1 micropositionner)

- These probes are available in different pitches from 25µm to 1250µm
- Various mounting styles for micropositionners
- Female V connector 1.85mm
- Available in BeCu or Tungsten
- Non Magnetic option
- High temperature and High Power options, please ask us
