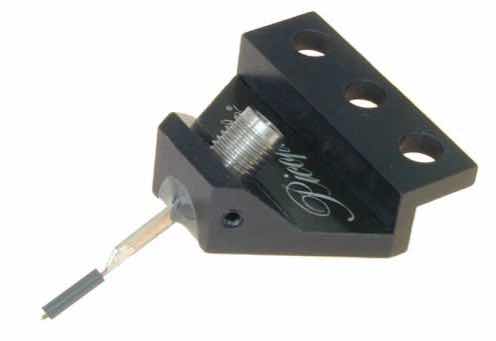

MWRF-67A RF probe 67 GHz

Part Number

MWRF-67A

Designation

RF probe 67 GHz

APPLICATIONS

HF & Microwave Probing

Description

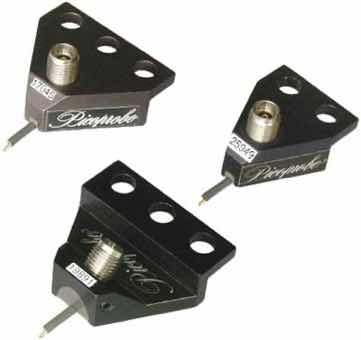

Serie of probes for RF Microwave applications up to 67GHz, GSG, GS, SG or "dual" configurations (dual = 2 probes on 1 micropositionner)

- These probes are available in different pitches from 25µm to 1250µm
- Various mounting styles for micropositionners
- Female V connector 1.85mm
- Available in BeCu or Tungsten
- Non Magnetic option
- High temperature and High Power options, please ask us

DOCUMENTS

MWRF-67A brochure (pdf)

MWRF dual brochure (pdf)

MWRF head style (pdf)

Technical Specifications

Frequency

DC to 67 GHz

Configuration

GSG, GS, SG, Dual

Pitch

25 to 1250 µm

Material

BeCu, Nickel, Tungsten

Mounting

13 styles

Waveguide

Connector

V (1.85mm)

Insertion Loss

<1.1 db

Return Loss

>14 db

Associated products

SM40RF & Microwave micropositioner

The SM40 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.

MW-CSCalibration substrate for RF probe

Calibration substrate series for RF probes, that allow high accuracy measurements.

- GSG, GS, SG or dual (GSSG, GSGSG...) configurations
- Through, short, load (50ohms)...
- Gold plated pads
- Calibration kit for analyzer (R&S, HP...)

SM90RF & Microwave micropositioner

The SM90 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.

WL1160B-8N8" RF manual analytical probe station

Economical while professional prober for RF and Microwave probing applications, available for single die, partial or full wafer up to 8".

- DC to 110 GHz measurement
- Stable platen and specific anti-resonant chuck construction
- Individual chuck for RF probes with independant rotation
- Quick lift platen and fine Z adjustment
- Allows binocular or trinocular microscope (Tilt-back clearing option)
- Accept up to 4 RF micropositioners and 4 DC micropositioners simultaneously
