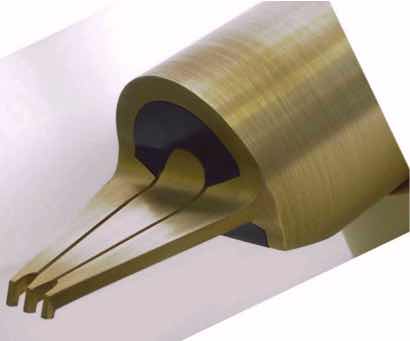

MWRF-ECP18      RF probe 18 GHz

MWRF-ECP18 : RF probe 18 GHz
MWRF-ECP18 : RF probe 18 GHz

Part Number

MWRF-ECP18

Designation

RF probe 18 GHz

Description

Series of probes for RF Microwave application up to 18GHz, GSG, GS, SG and Dual.

- These probes are available in different pitch from 100µm to 2500µm, per 25µm step
- Various mounting styles for positionners
- Non Magnetic option, please ask us

MOST POPULAR REFERENCES

  • MWRF-ECP18-SG-425-DP : SG configuration, 425µm pitch, BeCu tips, mounting style DP
  • MWRF-ECP18-GS-200-DP-NM : GS configuration, 200µm pitch, BeCu tips, mounting style DP, no magnetic

Technical Specifications

Frequency

DC to 18 GHz

Configuration

GSG, GS, SG

Pitch

100 to 2500 µm

Material

BeCu

Mounting

13 styles

Waveguide

No

Connector

SMA

Associated products

RF & Microwave micropositioner

SM40RF & Microwave micropositioner

The SM40 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.

RF & Microwave micropositioner

SM90RF & Microwave micropositioner

The SM90 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.
