Part Number

TA-VIS-7575

Designation

Active antivibration table

Description

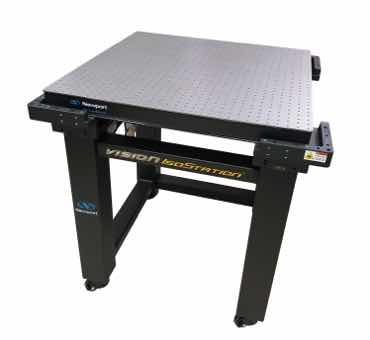

The table allows pneumatic filtering of vibrations, the 4 dampers efficiently filter the mechanical noise from the ground or neighbourhood for an ultra fine probe analysis, inspection or assembly.

- Platens available in several dimensions upon size and weight of the equipment
- Individually adjustable air pressure sensors at each corner

Technical Specifications

Dimensions

750x750 mm

Height

850 mm

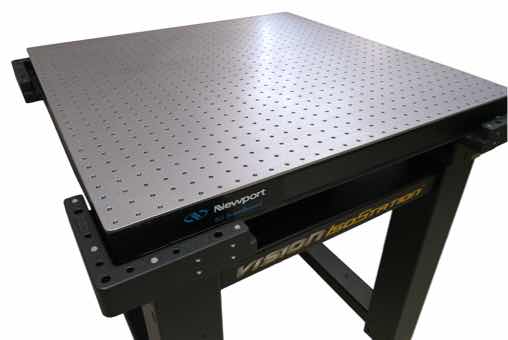

Platen

Acier inox (thickness 59mm)

Drill

M6 with 25mm pitch

Maxi load

240 Kg

Power supply

Continuous with dry air P~6bars

Vertical isolation

1.5 Hz

Horizontal isolation

1.2 Hz

Color

Black

Feet

4 casters and adjustable feet
