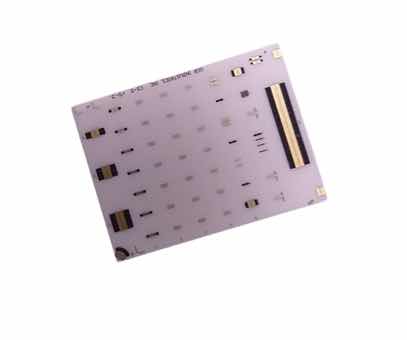

MW-CS      Calibration substrate for RF probe

MW-CS : Calibration substrate for RF probe MW-CS : Calibration substrate for RF probe

Part Number

MW-CS

Designation

Calibration substrate for RF probe

Description

Calibration substrate series for RF probes, that allow high accuracy measurements.

- GSG, GS, SG or dual (GSSG, GSGSG...) configurations
- Through, short, load (50ohms)...
- Gold plated pads
- Calibration kit for analyzer (R&S, HP...)

MOST POPULAR REFERENCES

  • MW-CS105 : For GSG probe, pitch range 75-250 µm
  • MW-CS10 : For GSG probe, pitch range 600-1250 µm
  • MW-CS102-150 : For GSGSG dual probe with 150 µm pitch

DOCUMENTS

Technical Specifications

Pads material

Gold

Associated products

RF & Microwave micropositioner

SM40RF & Microwave micropositioner

The SM40 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.

RF probe 40 GHz

MWRF-40ARF probe 40 GHz

High-precision RF measurements for your most demanding applications.

Designed to meet the requirements of microwave characterization environments, our coaxial RF probes enable reliable, accurate, and repeatable radiofrequency measurements directly on your semiconductor components.

They provide a high-performance solution for the electrical and RF characterization of active and passive components, whether in a research laboratory or an industrial setting.

Specifications:

• Configurations: GSG, GS, SG, GSSG, GSGSG
• Pitch from 25µm to 2540µm
• Various head styles
• 2.9mm K-type female connector
• Available in BeCu, nickel, or tungsten
• Non-magnetic option
• High-temperature and high-current/high-voltage options
RF probe 67 GHz

MWRF-67ARF probe 67 GHz

Serie of probes for RF Microwave applications up to 67GHz, GSG, GS, SG or "dual" configurations (dual = 2 probes on 1 micropositionner)

- These probes are available in different pitches from 25µm to 1250µm
- Various mounting styles for micropositionners
- Female V connector 1.85mm
- Available in BeCu or Tungsten
- Non Magnetic option
- High temperature and High Power options, please ask us
