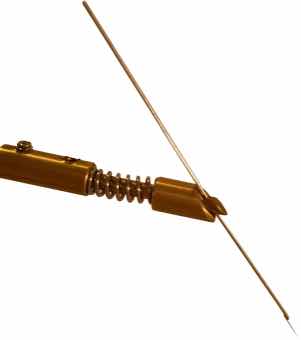

PTG4      Copper probe tip with tungsten wire

PTG4 : Copper probe tip with tungsten wire
PTG4 : Copper probe tip with tungsten wire

Part Number

PTG4

Designation

Copper probe tip with tungsten wire

APPLICATIONS

IV / CV Measurements & Failure analysis
  SIMILAR PRODUCTS   GET MORE DETAILS   SEND ME A QUOTE

Description

The wire-tip combines a rigid body with a thin tungsten wire of various diameters, the probe tip is then soft enough to avoid damaging the probing pad materials.

- Length of body 51 mm, tungsten wire 3 to 5 mm
- Body diameter 0.51 mm, wire 5 to 125 microns
- Tip radius 0.1 to 5 microns
- Most popular references : PTG410, PTG422, PTG435, PTG4135
- Download the full list below for more information

MOST POPULAR REFERENCES

  • PTG4-10 : Tip radius 0.1 µm, wire diameter 10 µm, wire length 3.3 mm
  • PTG4-22 : Tip radius 1 µm, wire diameter 22 µm, wire length 5.1 mm
  • PTG4-60 : Tip radius 3 µm, wire diameter 60 µm, wire length 5.1 mm
  • PTG4-125 : Tip radius 5 µm, wire diameter 125 µm, wire length 5.1 mm

Technical Specifications

Tip radius

0.1 to 5 µm

Body Diameter

0.51 mm

Length

51 mm

Material

Copper body with tungsten wire

Application

Fragile surface

Tungsten wire diameter

5 to 125 µm

Associated products

Coaxial Probe holder with teflon isolation

UxTBCoaxial Probe holder with teflon isolation

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for low noise IV measurements with it teflon insulation.
Coaxial Probe holder with ceramic isolation

UxGBCoaxial Probe holder with ceramic isolation

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for low noise IV measurements with it insulation and for high temperature, up to 600°C.
Standard Probe holder with screw lock

USStandard Probe holder with screw lock

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for standard IV measurements.
The tip holding is done by screw for very small footprint.
Standard Probe holder with spring lock

UPStandard Probe holder with spring lock

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for standard IV measurements.
The tip holding is done by spring for a quick and safe assembly.
