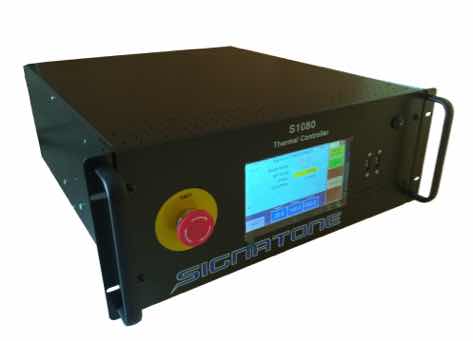

S1080 Thermal chuck controller

Part Number

S1080

Designation

Thermal chuck controller

APPLICATIONS

IV / CV Measurements & Failure analysis

HF & Microwave Probing

Description

The trip-temp chuck and controller (ambient-hot-cold) ranges from -60°C to +300°C and allows a complete temperature characterization of devices, whether they are partial wafers or full wafers up to 12".

- The temperature parameters setting is by touch screen panel or remote control
- The transition time from hot to cold or reverse is one of the fastest on the market
- It is possible to program a ramp while heating up

DOCUMENTS

S1080 brochure (pdf)

Technical Specifications

Temperature range

-60°C to +300°C (according configuration)

Resolution

0.1 °C

Accuracy

0.5 °C

Control

Touch screen

Communication

RS232

Implantation

19" rack compatible
