PROBE TESTINGTest accessoriesProbe holders

HVP      High voltage probe holder

HVP : High voltage probe holder
HVP : High voltage probe holder

Part Number

HVP

Designation

High voltage probe holder

APPLICATIONS

High Power Probing
  SIMILAR PRODUCTS   GET MORE DETAILS   SEND ME A QUOTE

Description

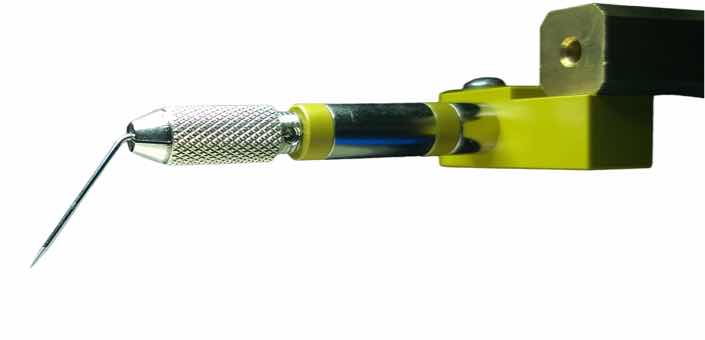

This probe holder series allow high voltage measurements, up to 20KV.

Tip holding by spindle or by screw.
Useful for IV measurements on HV transistors and HV diodes.

MOST POPULAR REFERENCES

  • HVP-TX-3 : Triax insulation • Max voltage : 3KV • Tip holding : By spindle • Min tip diameter : 0.63mm • Cable length : 1.5m • Connector : HV Triax • Max temperature : 300°C
  • HVP-CX-3 : Coax insulation • Max voltage : 3KV • Tip holding : By spindle • Min tip diameter : 0.63mm • Cable length : 1.5m • Connector : SHV • Max temperature : 300°C
  • HVP-UX-20 : Uniax insulation • Max voltage : 20KV • Tip holding : By screw • Cable length : 1.5m • Connector : HV banana • Max temperature : 300°C
  • HVP-CX-10-CM : Coax insulation • Max voltage : 10KV • Tip holding : By spindle • Min tip diameter : 0.63mm • Cable length : 1.5m • Connector : SHV • Max temperature : 300°C

Associated products

Customized dark box

MW-DBCustomized dark box

For probing systems that do not have local chamber option, Microworld manufactures Dark Boxes designed to completely enclose a micro probe station or other system.

- Electrical and light isolation
- User safety for high voltage applications
- Feed-thru connectors adapted to the instrumentation to be connected
- Goose-neck for cable access
- Customizable design dimensions
High power chuck

HPCHUCKHigh power chuck

The high power chuck has been designed for use when probing at high voltage or high current.

- 150, 200 or 300 mm size available
- For very high voltage measurement (10KV)
8

WL250-LE8" HF semi-automatic probe station with local enclosure

Semi-automatic probing stations for full wafer HF electrical characterization.

- Software : mapping, auto-alignment, pattern recognition, autofocus...
- Probecard application available
- Thermal characterization from -60°C to +300°C
- HF measurements up to 110 GHz
- Tool developed for design validation (R&D) and yield monitoring (production)
- Configuration : up 4 ports HF (N, S, E, W) and 4 DC
- Optional local enclosure for EMI shielding and light-tight

MOST POPULAR REFERENCES

WL250 : 200 mm version
WL350 : 300 mm version
WL250-LE : 200 mm with local enclosure
WL350-LE : 300 mm with local enclosure
High precision micropositioner SP100

SP100High precision micropositioner SP100

High-precision micropositioner with inline controls knobs, the SP100 will allow easy landing on pads as well as internal lines within micron accuracy.

- The down Z movement of the tip is totally vertical.
- The knobs with micrometric graduations (100TPI) allow an optimal density on the platen.
- Pivot head (Quick down Z for pre-positioning then fine movement) or Standard head with Z knob.
