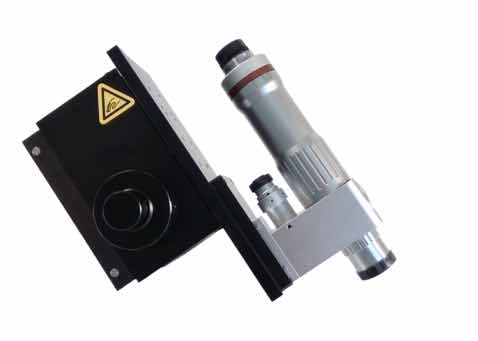

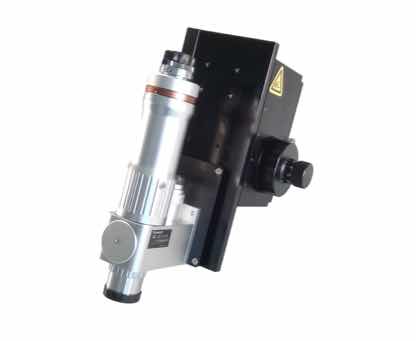

MS12Z Mono zoom microscope

Part Number

MS12Z

Designation

Mono zoom microscope

APPLICATIONS

HF & Microwave Probing

High Power Probing

Low-Leakage-Current Testing

IV / CV Measurements & Failure analysis

Description

This microscope is composed by a single objective and an internal zoom.
It allows a wide range of magnification without turret disadvantage for probing application.

- Light and compact
- Large working distance WD (ideal for high frequencies measurements applications)
- C-mount for camera
- High brightness (LED optical fiber)

DOCUMENTS

MS12Z brochure (pdf)

Technical Specifications

Eyepieces

Magnification range

104 to 600 X

Internal zoom

0.75, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10

Illumination

LED optical fiber (included)

Camera capable

Yes (C-mount)

Focus block

25 mm

Option

Objectives, camera, motorized zoom...
