MOTICAM4000 High definition digital camera

Part Number

MOTICAM4000

Designation

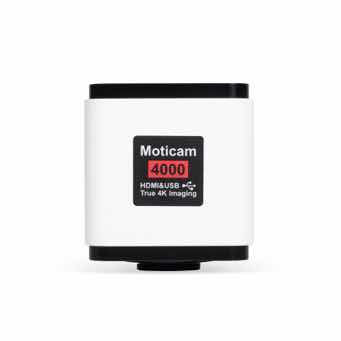

High definition digital camera

APPLICATIONS

IV / CV Measurements & Failure analysis

Low-Leakage-Current Testing

Description

High-definition digital camera for inspecting and assisting with the placement of tips on wafers.

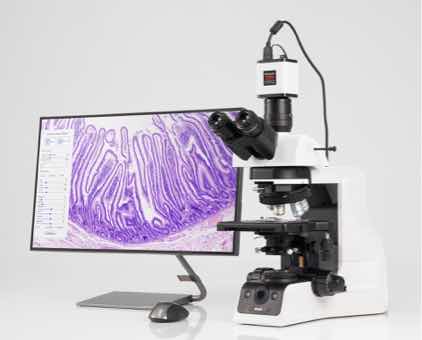

This camera uses a C-mount to be mounted on most microscopes on the market.
Its high definition gives it the possibility of placing the tips on very small pads.

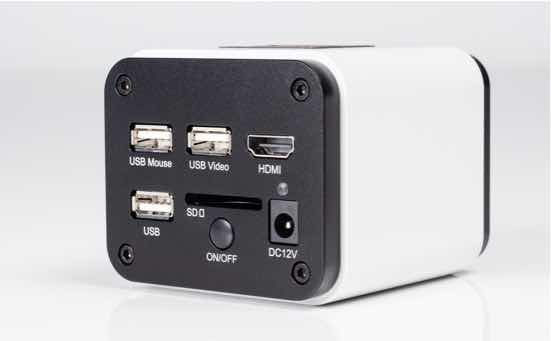

It has several outputs to allow a wide variety of uses (HDMI 4K, USB...).
An SD card can be connected to take quick pictures.

DOCUMENTS

Moticam4000 brochure (pdf)

Technical Specifications

Sensor type

CMOS 1/1.8"

Resolution

8 Mpx (3840x2160)

Connection

USB 2.0 - HDMI

Software

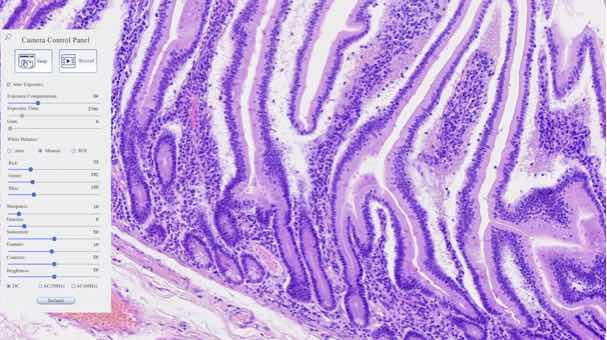

Motic Images Plus, visualization, pictures and measurement

Mount type

C mount

Power supply

12V ext V

Associated products

PSM1000Turret microscope

Turret microscope for fine inspection and high magnifications.
The PSM1000 is useful for precision contact on very small surfaces.

- It can be used as a stand alone or mounted onto analytical probe station
- A range of accessories is available including a variety of objectives (NIR, NUV, polarizer, analyzer...)
- The trinocular head accepts a choice of digital cameras
- Spectroscopic applications available

AZOOMµSingle-objective microscope

This microscope allows the same magnification than a multi-objectives turret miscoscope in a smaller footprint.
Its trinocular head allows the use of digital camera and/or a laser.

- The illumination is made by LED
- C-mount for camera
- High working distance (WD)

CM2508" semi-automatic probe station

Semi-automatic probe stations for full wafer electrical characterization up to 8" (200 mm).

- Software : mapping, auto-alignment, pattern recognition, autofocus...
- Probecard application available
- Temperature characterization up to +600°C
- High voltage (HV - 10kV) and low leakage (fA) measurements
- Tool developed for design validation (R&D) and yield monitoring (production)
- Configuration : up 10 ports DC/Kelvin
- Compatible with high performances ERS chuck (patented air cooling system, temperature from -60°C to +300°C)
