PTSE-20BC      Beryllium copper probe tip

PTSE-20BC : Beryllium copper probe tip PTSE-20BC : Beryllium copper probe tip

Part Number

PTSE-20BC

Designation

Beryllium copper probe tip

Description

beryllium copper straight probe tip, the rigid body can be bent and/or cut to clear space above for very short working distance objectives.

- The standard application is probing on pads and/or internal lines

- Tip material provides a good answer to probing at high current or on soft surface

Technical Specifications

Tip radius

12 µm

Body Diameter

0.51 mm

Length

19 mm

Material

Beryllium copper

Application

Soft materials and high current

Packaging

5 tips box

Associated products

Coaxial Probe holder with teflon isolation

UxTBCoaxial Probe holder with teflon isolation

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for low noise IV measurements with it teflon insulation.
Coaxial Probe holder with ceramic isolation

UxGBCoaxial Probe holder with ceramic isolation

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for low noise IV measurements with it insulation and for high temperature, up to 600°C.

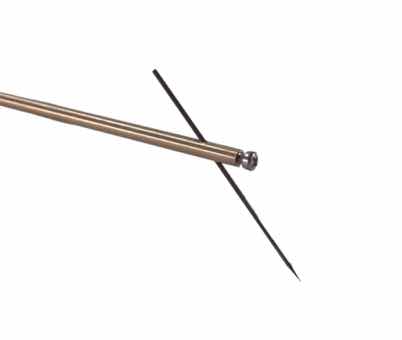

Standard Probe holder with screw lock

USStandard Probe holder with screw lock

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for standard IV measurements.
The tip holding is done by screw for very small footprint.
Standard Probe holder with spring lock

UPStandard Probe holder with spring lock

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for standard IV measurements.
The tip holding is done by spring for a quick and safe assembly.
