S926P Precision micropositioner S926 with pivot head

Part Number

S926P

Designation

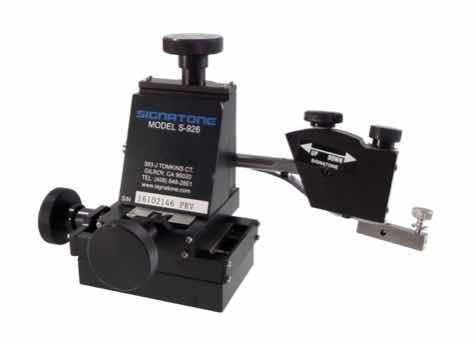

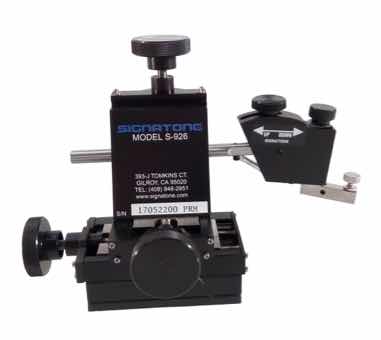

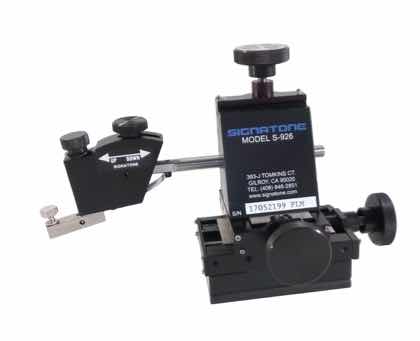

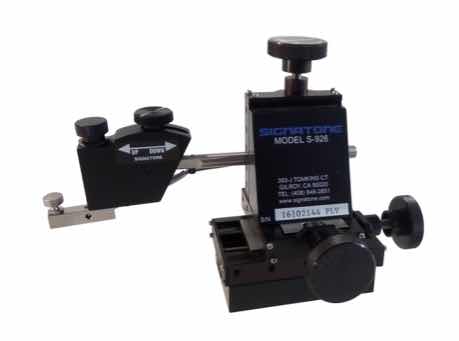

Precision micropositioner S926 with pivot head

APPLICATIONS

Low-Leakage-Current Testing

IV / CV Measurements & Failure analysis

Description

This precision positioner allows placing probe tip on pads or lines within accuracy of the micrometer.

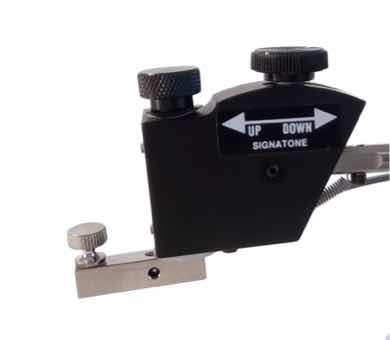

The pivot head is perfect for a quick positioning in Z and fine adjust.

DOCUMENTS

S926 brochure (pdf)

Technical Specifications

Accuracy

1 µm

X-Axis Clearance

12 mm

Y-Axis Clearance

12 mm

Z-Axis Clearance

7 mm

Resolution

100 TPI

Knob

Right or Left

Basis style

Magnetic or vacuum

Head style

Pivot head

Associated products

MW-SCA50Coaxial HF-Low-current probe

The coaxial Probe is designed for low-level signal probing (lower than 10fA@150°C)

- The probe's single unit design is especially desirable for the best possible electrical characteristics
- The Coaxial Probe is also offered with optional Ground Plane, Kelvin and resistor series /parallel configurations
- The Probes are constructed of microwave-quality components with a 50 Ohm semi-rigid cable shield being achieved through the utilisation a Teflon dielectric
- The probe contact protrudes from the shielding by .150" (3 mm) to maintain low-level signal noise to the probe
- Tips available (replaceable) from 0.5 µm to 20 µm
- The connector is a standard SSMC

CM170High stability manual probe station

From two model combination, the CM170 probe stations allows stability and accuraccy for moderate price.

- Large platen for frequency extender head use
- Multiple applications (optical, probecards, HF...)

MOST POPULAR REFERENCES

CM170 : DC to 100 MHz measurements
WL170 : DC to 110 GHz measurements
WL170-THz : mmW up to 1.1 THz (special raised chuck)

D3Dark box with chuck

This small probe station has been designed for high themperature application, it includes a chuck (ambient or hot chuck) and a circular platen that allow several magnetic micropositioner.

- A microscope can be used to contact small pads
- An economical solution for a variety of probing applications

UxTBCoaxial Probe holder with teflon isolation

This probe holder allows to mount a probe tip with an angle of 45°.

It is useful for low noise IV measurements with it teflon insulation.

PTG20Tungsten probe tip

General purpose probe tip sharpened at one extremity, the body material (tungsten) is strong enough to be bent into a variety of shapes.

- The standard application is probing on pads and/or internal lines
- Material tungsten, length 38 mm, tip radius from 0.5µm to 100µm
- Nickel-plated option is available for body only (easy soldering), please add the suffix ''N'' to the P/N

S1160B-8N8" manual analytical probe station

Probe station under tips for precision analyses, such as IV, CV, on chips alone, on wafers, on components, etc. Modular, the S1160 can accommodate several options and accessories for a multitude of applications (temperature, low current measurements, etc.).

- Rapid elevation of the plate by manual arm (contact / non-contact)
- Accepts binocular and trinocular microscopes
- Wafers up to 8'' (200mm wafers)
- Angular adjustment of the Wafer
- Accommodates up to 8 DC micropositioners or a pin board
- Massive chassis for better stability

COMMON REFERENCES:

S1160A-8N: Optical bridge movement for turret microscope
S1160B-8N: Movement of the optical bridge for trinocular stereozoom microscope
S1160C-8N: Fixed optical bridge for trinocular stereozoom microscope
