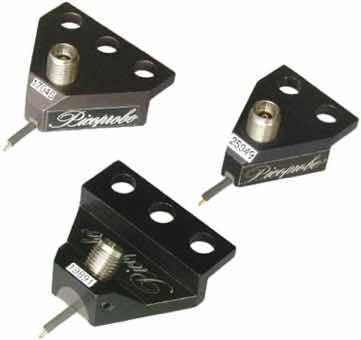

MWRF-50A      RF probe 50 GHz

MWRF-50A : RF probe 50 GHz
MWRF-50A : RF probe 50 GHz
MWRF-50A : RF probe 50 GHz
MWRF-50A : RF probe 50 GHz

Part Number

MWRF-50A

Designation

RF probe 50 GHz

Description

Serie of probes for RF Microwave applications up to 50GHz, GSG, GS, SG or "dual" configurations (dual = 2 probes on 1 micropositioner)

- These probes are available in different pitches from 25µm to 1250µm
- Various mounting styles for micropositioners
- Female connector 2.4mm
- Available in BeCu, Tungsten or Nickel
- Non Magnetic option
- High temperature and High Power options, please ask us

MOST POPULAR REFERENCES

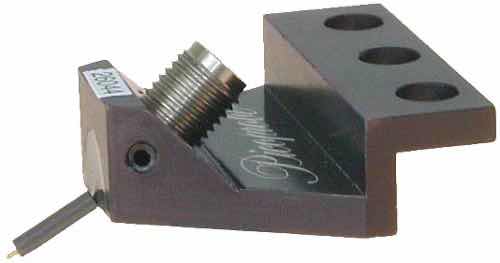

  • MWRF-50A-GS-150-DP-N : GS configuration, 150µm pitch, Nickel tips, mounting style DP
  • MWRF-50A-GSG-150-DP : GSG configuration, 150µm pitch, BeCu tips, mounting style DP

Technical Specifications

Frequency

DC to 50 GHz

Configuration

GSG, GS, SG, Dual

Pitch

25 to 1250 µm

Material

BeCu, Nickel, Tungsten

Mounting

13 styles

Waveguide

No

Connector

2.4mm

Insertion Loss

<1 db

Return Loss

>18 db

Maximum current

2 A

Maximum voltage

50 V

Associated products

RF & Microwave micropositioner

SM40RF & Microwave micropositioner

The SM40 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.

Calibration substrate for RF probe

MW-CSCalibration substrate for RF probe

Calibration substrate series for RF probes, that allow high accuracy measurements.

- GSG, GS, SG or dual (GSSG, GSGSG...) configurations
- Through, short, load (50ohms)...
- Gold plated pads
- Calibration kit for analyzer (R&S, HP...)
RF & Microwave micropositioner

SM90RF & Microwave micropositioner

The SM90 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.
8

WL1160B-8N8" RF manual analytical probe station

Economical while professional prober for RF and Microwave probing applications, available for single die, partial or full wafer up to 8".

- DC to 110 GHz measurement
- Stable platen and specific anti-resonant chuck construction
- Individual chuck for RF probes with independant rotation
- Quick lift platen and fine Z adjustment
- Allows binocular or trinocular microscope (Tilt-back clearing option)
- Accept up to 4 RF micropositioners and 4 DC micropositioners simultaneously

MOST POPULAR REFERENCES


WL1160A : Moving of optical bridge for turret microscope
WL1160B : Moving of optical bridge for trinocular stereozoom microscope
WL1160C : Fixed optical bridge for trinocular stereozoom microscope
