MWPA-35      Active probe 35

MWPA-35 : Active probe 35 MWPA-35 : Active probe 35

Part Number

MWPA-35

Designation

Active probe 35

Description

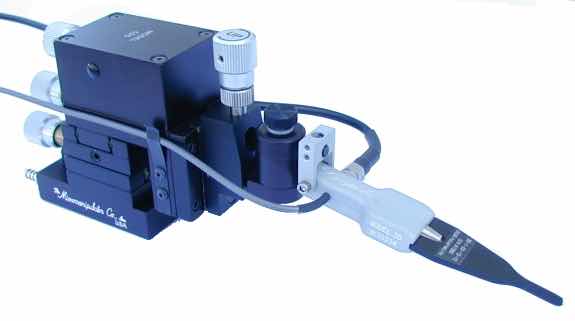

Active probe tip for characterization on internal nodes requiring a low input capacitance

- The active arm has specific mounting to the micropositioner (specify when ordering)
- A separate power supply provides power to the probes (up to 2 per power supply), ref. MW-PS3
- Frequency range DC to 26 GHz
- The replaceable probe tip includes a MOS at the input and mounts onto the active arm, several tip shank diameters and radius are available
- See the range of replaceable probes tips MWPA-R12C
- Other models : 7, 7A, 12C, 18C, 19C, 28, 29, 34A

Technical Specifications

Frequency

DC to 26 GHz

Input Capacitance

0,05 pf

Input Resistance

1,25 Mohm

Maximum voltage

-6 to +6 V

Accuracy

2 %

Signal attenuation

10:1

Rise/fall time

14 ps

Power supply

PS3 (not included)

Associated products

RF & Microwave micropositioner

SM40RF & Microwave micropositioner

The SM40 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.

Micropositioner S725 with pivot head

S725PMicropositioner S725 with pivot head

This economic micropositioner will allow landing on pads or lines down to 20 µm.
Pivot head (quick Z down before fine adjust, ideal for probe station).
RF & Microwave micropositioner

SM90RF & Microwave micropositioner

The SM90 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.
Micropositioner S725 with spring head

S725SMicropositioner S725 with spring head

This micropositioner will allow landing on pads or lines down to 20µm.
Spring head (for fragile surface or temperature), allows limiting the pressure of needles on the pads.
Precision micropositioner S926 with pivot head

S926PPrecision micropositioner S926 with pivot head

This precision positioner allows placing probe tip on pads or lines within accuracy of the micrometer.
The pivot head is perfect for a quick positioning in Z and fine adjust.
Precision micropositioner S926 with spring head

S926SPrecision micropositioner S926 with spring head

This precision micropositioner allows placing probe tips on pads or lines within accuracy of the micrometer.
The spring head is perfect for temperature applications or fragile layers.
Micropositioner S725 for high temperature

S725HTMicropositioner S725 for high temperature

This economic micropositioner will allow probe tips to land on pads or lines down to 20 µm.
Special model for temperature probe test measurement, up to 600°C.
