COMPONENTS TESTÌNG AND BURN INBurn in boards

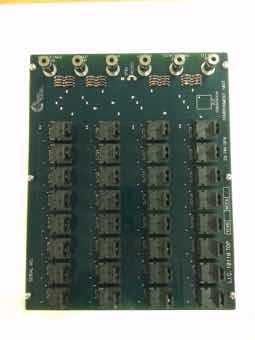

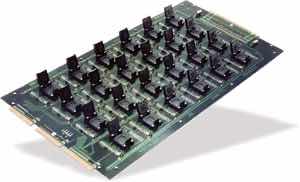

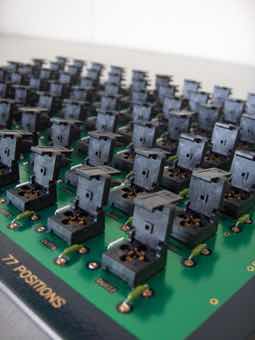

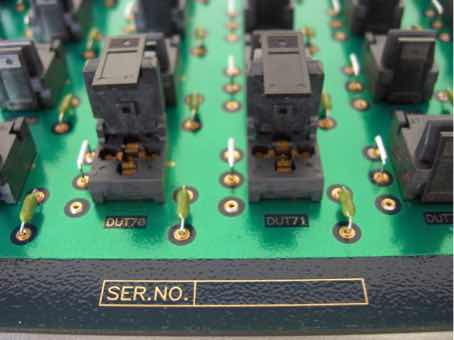

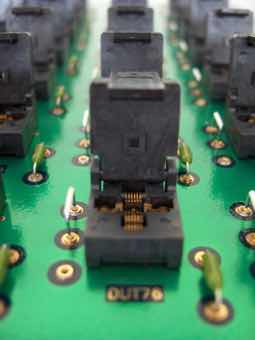

BIB Burn-in boards

Part Number

BIB

Designation

Burn-in boards

APPLICATIONS

Burn in of components for reliability testing

Description

Designed and fabricated upon Customer Specsheet, single or double-sided, multi-layers, available for all format types of burn in ovens (humidity, temperature, hast).
• Designed for all components style, various pcb options (FR4, polyimide...)
• Electric additional circuitry included (biasing...) if needed
• Designed for standing standard and/or severe thermal environments (Dry, Humidity, Hast test...)
• Fully customized designs for all applications, power dissipation, high frequency, prototyping...

Technical Specifications

Application

Dry temp, humidity, Hast test...

Electrical Tests

DC, HF, high power, low noise...

Associated products

SOKQFNStandard test socket for QFN packages

Burn in and Test sockets for for QFN packages, selected from catalog or by analysis of device drawing and specific development.

• Fine Pitches of 0.22 mm and greater, temperaturel
• Over 1300 QFN's designs, ClamShell or Open Top, screw-lid...
• Specific options are available such as non-magnetic, power dissipation (heatsink), Kelvin...
• Please send us the details of your component (mechanical drawing) to check availability and receive an offer

SOKCUSTCustomized Test Socket

Burn in and Test socket specifically developped according to Customer SpecSheet for a particular component and associated test environment.

• Applications : HF, high power, failure analysis on packaged devices, new packages testing...
• Fabrication in two steps : Drawing release (2 weeks) - Approval - Fabrication (typical 6 weeks)
• This socket will totally match your application as being developed for it

SOKBGAStandard test socket for BGA packages

Burn in and Test sockets for all BGA package styles, newest or oldest, available from existing design or developed in semi-custom ou full custom mode.

• Pitches start at 0.22mm, temperature
• Low-Profile and small footprint design
• Designed to efficiently accomodate variations in packages thickness
• Over 1300 designs, ClamShell, Open Top, Screw-Lid...
• Please send us the details of your component (mechanical drawing) to check availability and receive an offer

SOKLCCTest socket for other packages (Flat-Pack, LCC, Axial-Radial, TO...)

Burn in and Test sockets for all package styles, newest or oldest, available from existing design or developed in semi-custom ou full custom mode.

• Pitches upon package drawing, temperature, options
• Low-Profile and small footprint design,
• Over 5000 designs, ClamShell, Open Top, Screw-Lid, C type contacts, spring contact, balls...
• Please send us the details of your component (mechanical drawing) to check availability and receive an offer

For technical and commercial information, quote, ordering or request of visit by our representative. +33 (0)476 561 617
