MWPA-18C      Active probe 18C

MWPA-18C : Active probe 18C
MWPA-18C : Active probe 18C

Part Number

MWPA-18C

Designation

Active probe 18C

Description

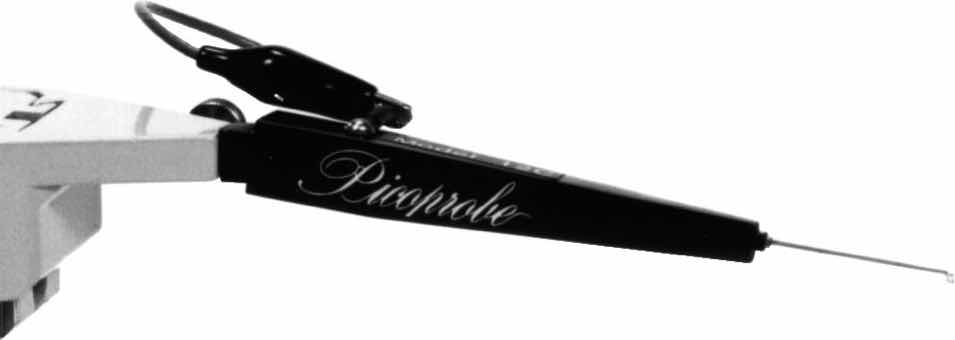

Active probe tip for characterization on internal nodes requiring a low input capacitance

- The active arm has specific mounting to the micropositioner (specify when ordering)
- A separate power supply provides power to the probes (up to 2 per power supply)
- The supplied replaceable probe tip includes a MOS at the input and mounts onto the active arm, several tip shank diameters and radius are available
- See the range of replaceable probes tips MWPA-R18C
- Other models : 7, 7A, 12C, 19C, 28, 29, 34A, 35...

DOCUMENTS

Technical Specifications

Frequency

DC to 350 MHz

Input Capacitance

0,02 pf

Leakage current

10 fA

Maximum voltage

0 to +10 V

Accuracy

0,2 at 5V / 2,0 at 10V %

Signal attenuation

From 10:1 to 20:1

Gain accuracy

+/-5 %

Rise/fall time

1.2 ns

Tip material

Tungsten

Power supply

PS2 (not included)
