MWPA-7      Active probe model 7

MWPA-7 : Active probe model 7
MWPA-7 : Active probe model 7

Part Number

MWPA-7

Designation

Active probe model 7

Description

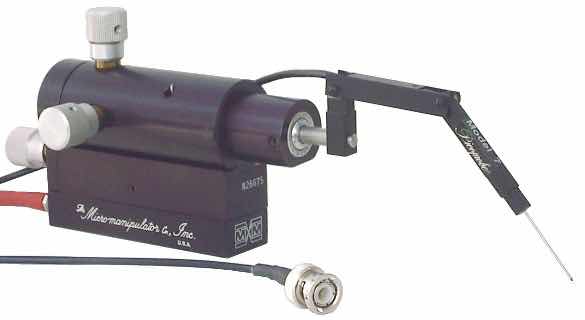

The model 7 is designed as a companion probe to Models 12C and 18C for driving integrated circuit lines so the Model 12C and 18C can be used to measure the response of adjacent nodes.

- A flexible 6 foot, 50 ohm coaxial cable accurately terminated to 50 ohms avoids undesirable reflections
- A special miniature connector receives replacement coaxial probe tips providing a shielded environment to within 3 mm of the fine tungsten probe point
- Other models : 7, 7A. For every micropositioner (please specify the model)
- For temperature applications up to 200°C, the models MWPA-7-HT and MWPA7A-HT are available

DOCUMENTS

Technical Specifications

Frequency

DC to 500 MHz

Signal attenuation

From 10:1 to 20:1

Tip material

Tungsten

Impédance

50 Ohm

Associated products

RF & Microwave micropositioner

SM40RF & Microwave micropositioner

The SM40 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.

Ultra-stable submicronic micropositioner SP150

SP150Ultra-stable submicronic micropositioner SP150

High-precision ultra-stable micropositioner with inline controls knobs, the SP150 will allow easy landing on pads as well as internal lines with a submicron accuracy.

- The down Z movement of the tip is totally vertical.
- The knobs with micrometric graduations (100TPI) allow an optimal density on the platen.
- Standard head (down movement by the Z fine knob) or Pivot head for a quicker Z positioning.
- The SP150 today represents the state-of-the-art in term of accuracy of positioning.
Micropositioner S725 with pivot head

S725PMicropositioner S725 with pivot head

This economic micropositioner will allow landing on pads or lines down to 20 µm.
Pivot head (quick Z down before fine adjust, ideal for probe station).
High precision micropositioner SP100

SP100High precision micropositioner SP100

High-precision micropositioner with inline controls knobs, the SP100 will allow easy landing on pads as well as internal lines within micron accuracy.

- The down Z movement of the tip is totally vertical.
- The knobs with micrometric graduations (100TPI) allow an optimal density on the platen.
- Pivot head (Quick down Z for pre-positioning then fine movement) or Standard head with Z knob.
RF & Microwave micropositioner

SM90RF & Microwave micropositioner

The SM90 micropositioner is specifically designed for RF probing, it has one inch translation capabilities in all axes and a cross-roller bearings to prevent accidentally moving the tip if bumped.

- Accepts all types of coplanar RF probes.
- Perfectly stable with screw-lock fixation on the platen (optional magnetic base).
- An integral co-planarity adjustment provides for adjusting multicontact planarities (GS, GSG, GSGSG configurations).
- It is available with various head configurations allowing the microwave head to be introduced from the front, rear.
Micropositioner S725 with spring head

S725SMicropositioner S725 with spring head

This micropositioner will allow landing on pads or lines down to 20µm.
Spring head (for fragile surface or temperature), allows limiting the pressure of needles on the pads.
Precision micropositioner S926 with pivot head

S926PPrecision micropositioner S926 with pivot head

This precision positioner allows placing probe tip on pads or lines within accuracy of the micrometer.
The pivot head is perfect for a quick positioning in Z and fine adjust.
Precision micropositioner S926 with spring head

S926SPrecision micropositioner S926 with spring head

This precision micropositioner allows placing probe tips on pads or lines within accuracy of the micrometer.
The spring head is perfect for temperature applications or fragile layers.
Micropositioner S725 for high temperature

S725HTMicropositioner S725 for high temperature

This economic micropositioner will allow probe tips to land on pads or lines down to 20 µm.
Special model for temperature probe test measurement, up to 600°C.
